Description

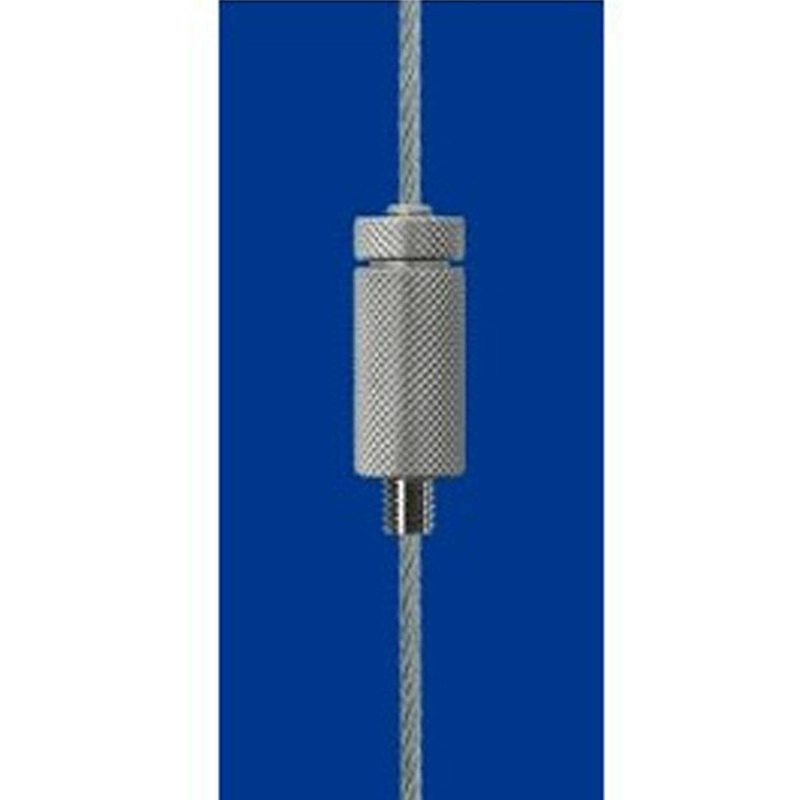

This fitting can be securely attached to shelving, display boards or scenery by means of the threaded stud available in 2 diameters.
When the cap is depressed the fittings slide along the wire and grip when the cap is released. To prevent accidental release they are fitted with a safety cap.
The WLLs are rated assuming stainless steel wire rope; working loads are slightly higher using galvanised wires.
Specification for both sizes:
Fits Wire: 1.5 – 2.5 mm 7×7 construction
Static WLL 1.5 mm: 16 kg
Static WLL 2.5 mm: 40 kg
Thread Length: 6 mm
