Mooring buoy

Description

• Hot-dip galvanized tenon and swivel
• Just fill with air
• Two lengths of buoy

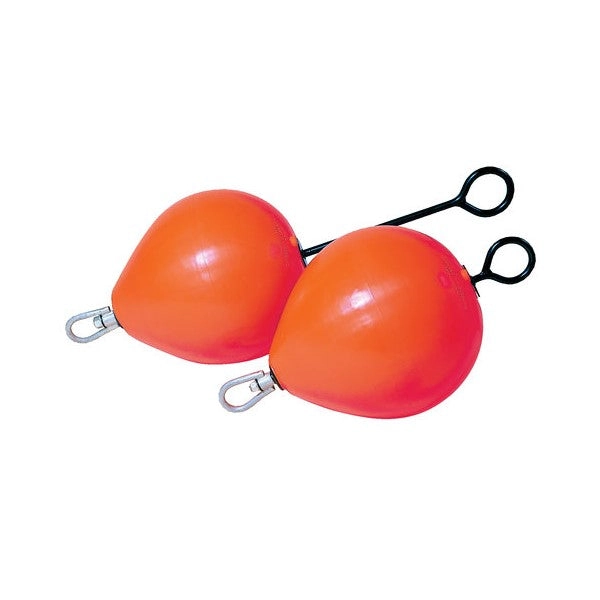

Polyform’s inflatable mooring buoys are available in short tenon (CCE) and long tenon (CCD) models. The buoys are delivered fully assembled with tenon and swivel in the bottom and only need to be filled with air before they are ready for use. All metal parts are hot-dip ten
1151602
Buoyancy kg: 28.0
Hole mm Ø: 20
Height mm: 465
Circumference inch: 50
Ten length mm: 165
Weight kg: 4.5
Ø mm: 405
1151603
Buoyancy kg: 53.0
Hole mm Ø: 24
Height mm: 500
Circumference inch: 60
Ten length mm: 170
Weight kg: 5.5
Ø mm: 4801151604
Buoyancy kg: 104.0
Hole mm Ø: 24
Height mm: 600
Circumference inch: 75
Ten length mm: 170
Weight kg: 8.6
Ø mm: 610
Long ten1151605
Buoyancy kg: 27.0
Hole mm Ø: 20
Height mm: 465
Circumference inch: 50
Ten length mm: 565
Weight kg: 5.2
Ø mm: 405
1151606
Buoyancy kg: 52.0
Hole mm Ø: 24
Height mm: 500
Circumference inch: 60
Ten length mm: 585
Weight kg: 7.3
Ø mm: 480
1151607
Buoyancy kg: 100.0
Hole mm Ø: 24
Height mm: 600
Circumference inch: 75
Ten length mm: 815
Weight kg: 10.1
Ø mm: 610
