Description
Oceanflex thin wall tinned electrical cable, with 2.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a single core copper conductor manufactured to BS EN 60228:2005 which is tinned and then insulated in a hard grade PVC insulation. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.

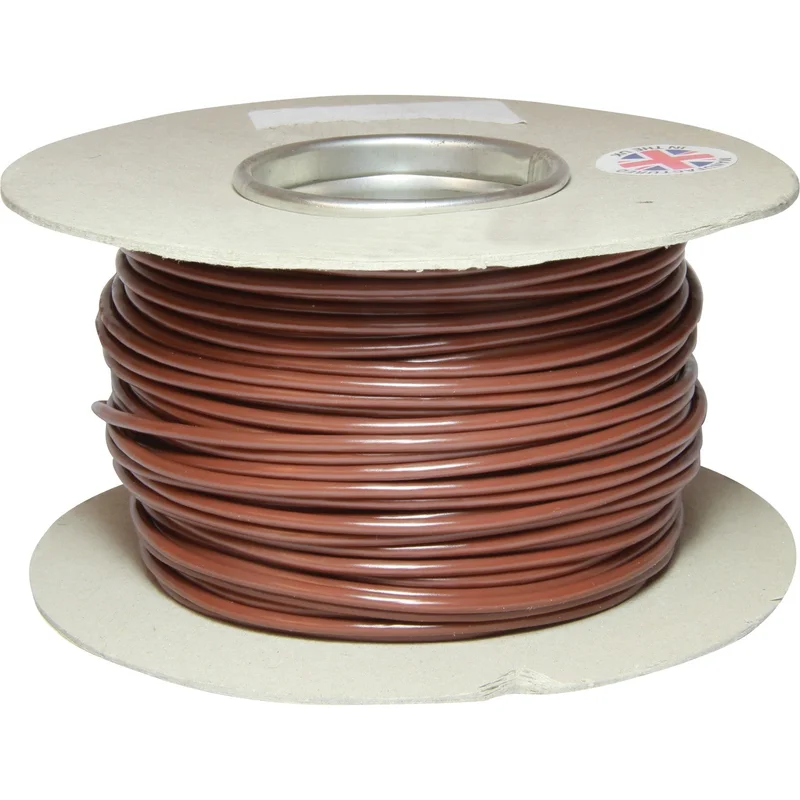

This is a 50 metre cable reel with brown PVC wall, other wall colours are also available.
| Maximum Load | 12V = 348 Watts, 24V = 696 Watts |
| Style | Thin Wall Cable |
| Cable Conductor | Tinned Copper |
| Cable Cores | 1 Core |
| Unit of Sale | 50 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 35/0.30 mm |
| Cable Conductor Cross Section | 2.5mm² |
| Replaces | 712125-C |
| Resistance Per Metre at 20degC | 0.00782 ohms |
| Shape | Round |
| Brand | Oceanflex |
| Colour | Brown |
| Voltage | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps | Nominal Current Rating: 29A |
| Approvals | Manufactured in accordance with ISO6722: 2011 (Class B) |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter | Max Outside Diameter: 3.0mm |
| Country of Origin | United Kingdom |
Technical Article – Choosing the Correct Electrical Cable
Manufacturer Part Number: CM2.5N.50
