Description

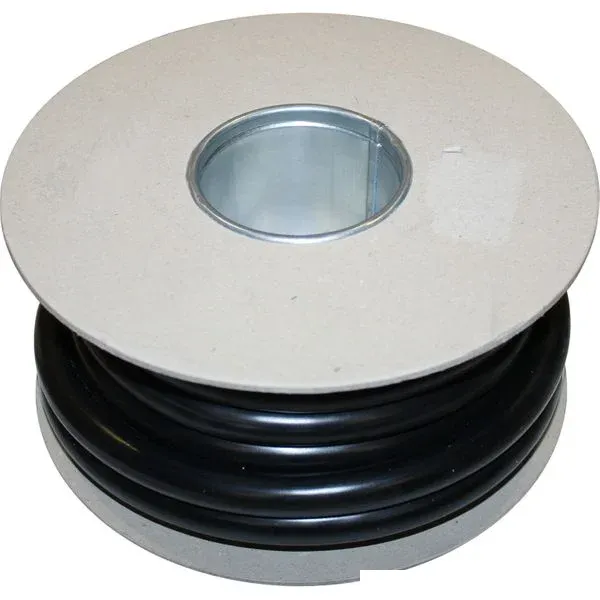

1 metre Oceanflex flexible PVC electrical cable, suitable for use as battery cable or starter cable in marine and automotive applications. The cable features a tinned multi strand copper conductor with a black PVC insulation to represent a negative electrical connection. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath gives the cable good resistance to petrol, lubricating oils and diluted acids.
This 70mm² battery cable can also be used to operate bow thrusters as well as winches and windlasses.
| Approvals | Manufactured in accordance with ISO6722: 2011 (Class B) |
| Temperature Range | -30°C to +70°C |
| Voltage | Max. 60V (suitable for 12V DC & 24V DC systems) |
| Brand | Oceanflex |
| Style | Battery Cable |
| Cable Conductor | Tinned Copper |
| Cable Cores | 1 Core |
| Colour | Black |
| Country of Origin | United Kingdom |
| Unit of Sale | Per Metre |
| Cable Insulation | PVC |
| Conductor Specifications | 0.30mm |
| Cable Conductor Cross Section | 70mm² |
| Diameter | Max Outside Diameter: 15.5mm |
| Resistance Per Metre at 20degC | 0.000277 ohms |
| Shape | Round |
| Amps | Nominal Current Rating: 485A |
Technical Article – Choosing the Correct Electrical Cable
