Description

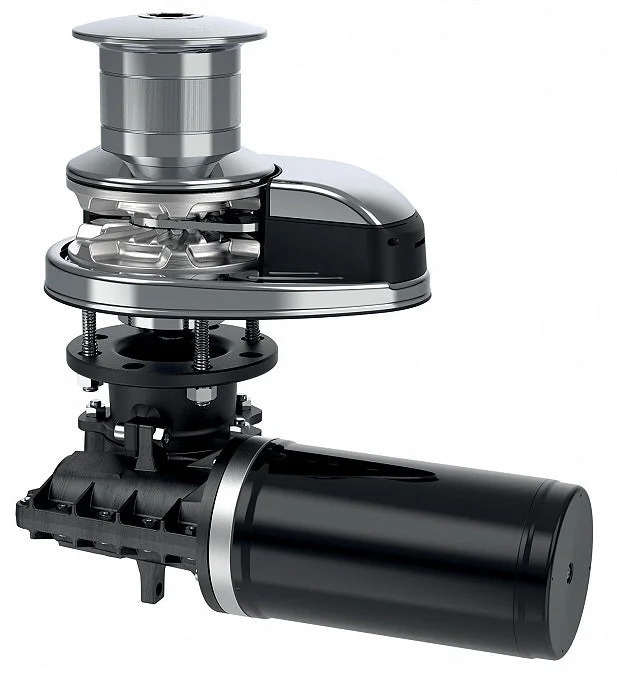

- Vertical windlasses
- Stainless steel Aisi 316 base
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for
chain counter - Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 Motor watertight (700 – 1000 W)
- IP66 Motor watertight (300 – 500 W)
- Technopolymer gearbox
| DP | 300 W 12V | 5 – 7,5 m | 16 – 25 ft |
| DP | 500 W 12/24V | 5 – 9 m | 16 – 30 ft |
| DP | 500 W HS 12V | 5 – 7,5 m | 16 – 25 ft |
| DP | 500 W HS 24V | 5 – 9 m | 16 – 30 ft |
| DP | 700 W 12/24 V | 7 – 12 m | 23 – 40 ft |
| DP | 1000 W 12/24V | 8 – 13 m | 26 – 43 ft |
The indication may vary according to the boat type and the anchor-rode type
| Gypsy and Drum | Ø 105 mm/ 4″ 9/64 |
| GYPSY | 6 mm | 7 mm – 1/4″ | 8 mm | 5/16″ | ||||||
| CHAIN | 6 mm | 6 mm | 7 mm | 7 mm | 1/4″ | 1/4″ | 8 mm | 8 mm | 5/16″ | 5/16″ |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | BBB | G4 | |
| ROPE | 1/2″ (12,7 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.
Supplied accessories standard
Contactor unirts
| MODELS | T6415-12 | T6415-24 | T6315-12 | T6315-24 |
| 300 W | 12 V | |||
| 500 W | 12 V | 24 V | ||
| 500 W HiSpeed | 12 V | 24 V | ||
| 700 W | 12 V | 24 V | ||
| 1000 W | 12 V | 24 V |
Nylon Handle (300/500 W)
Technopolymer Handle (700/1000 W)
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
| Standard version | DP2 500 / 500 D | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 660 Kg / 1455 lb | |
| Maximum working load | 200 Kg / 441 lb | 220 Kg / 485 lb |
| Working load | 65 Kg / 143 lb | 70 Kg / 154 lb |
| Current absorbtion @ working load (1) | 80 A | 40 A |
| Maximum chain speed (2) | 28,9 m/min 94.8 ft/min |
28,2 m/min 92.5 ft/min |
| Maximum chain speed @ working load (2) | 24,3 m/min 79.7 ft/min |
24,1 m/min 79.1 ft/min |
| Weight – DP2 – [without drum] | 9 Kg / 19 lb | |
| Weight – DP2 D – [with drum] | 9,8 Kg / 21 lb | |
| HI-SPEED version | DP2 500 HS / 500 D HS | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 600 Kg | 1323 lb | |
| Maximum working load | 170 Kg / 375 lb | 200 Kg / 441lb |
| Working load | 65 Kg / 143 lb | 70 Kg / 154 lb |
| Current absorbtion @ working load (1) | 100 A | 50 A |
| Maximum chain speed (2) | 43 m/min 141,1 ft/min |
42.5 m/min 139,4 ft/min |
| Chain speed @ working load (2) | 34,5 m/min 113,2 ft/min |
35 m/min 114,8 ft/min |
| Weight – DP2 – [without drum] | 9 Kg / 19 lb | |
| Weight – DP2 D – [with drum] | 9,8 Kg / 21 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Dimensions
Supplied accessories standard
Contactor unirts
| MODELS | T6415-12 | T6415-24 | T6315-12 | T6315-24 |
| 300 W | 12 V | |||
| 500 W | 12 V | 24 V | ||
| 500 W HiSpeed | 12 V | 24 V | ||
| 700 W | 12 V | 24 V | ||
| 1000 W | 12 V | 24 V |
Nylon Handle (300/500 W)
Technopolymer Handle (700/1000 W)
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
