Description

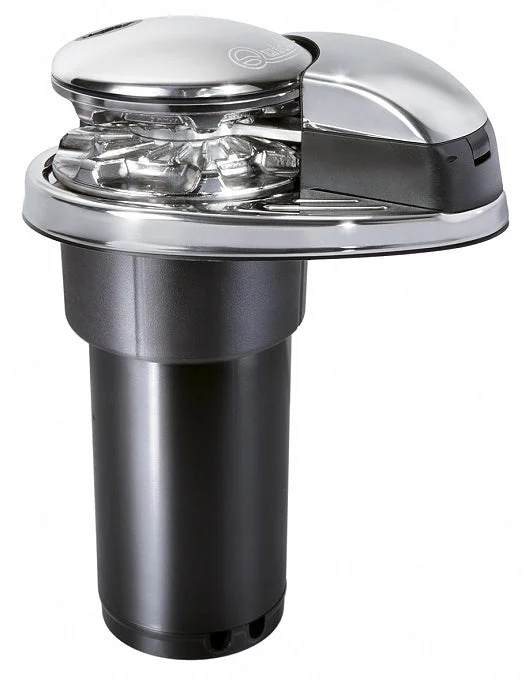

- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium in hard oxide.
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- Anodized aluminium gearbox
for boats from 6 to 10 meters (20 – 40 ft)
| DP2E 500 W |
6 – 10 m |
20 – 33 ft |
| DP2E 800 W |
7 – 12 m |
23 – 40 ft |
The indication may vary according to the boat type and the anchor-rode type
|
Gypsy and Drum |
Ø 105 mm/ 4″ 9/64 |
| GYPSY |
6 mm |
7 mm – 1/4″ |
8 mm |
5/16″ |
| CHAIN |
6 mm |
6 mm |
7 mm |
7 mm |
1/4″ |
1/4″ |
8 mm |
8 mm |
5/16″ |
5/16″ |
| DIN 766 |
ISO |
DIN 766 |
ISO |
G4 |
BBB |
DIN 766 |
ISO |
BBB |
G4 |
| ROPE |
1/2″ (12,7 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.
Supplied accessories standard
| MODELS |
T6415-12 |
T6415-24 |
| 500 W |
12 V |
|
| 800 W |
12 V |
24 V |
Nylon handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
| Standard version |
DP2E 1000 / 1000 D |
| Motor power |
800 W |
| Motor supply voltage |
12 V |
| Maximum pull |
820 Kg / 1808 lb |
| Maximum working load |
290 Kg / 639 lb |
| Working load |
95 Kg / 209 lb |
| Current absorbtion @ working load (1) |
84 A |
| Maximum chain speed (2) |
22,5 m/min / 73.8 ft/min |
| Maximum chain speed @ working load (2) |
15.2 m/min / 49.9 ft/min |
| Weight – DP2E – [without drum] |
8,3 Kg / 20,9 lb |
| Weight – DP2E D – [with drum] |
9,1 Kg / 23,6 lb |
| 1) |
After an initial period of use |
| 2) |
Measurements taken with a gypsy for a 8 mm chain |
Dimensions
Deck thickness:
20÷40 mm (25/32”÷1”9/16)
On request, shaft and studs can be supplied
for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| MODELS |
T6415-12 |
T6415-24 |
| 500 W |
12 V |
|
| 800 W |
12 V |
24 V |
Nylon handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
