Description

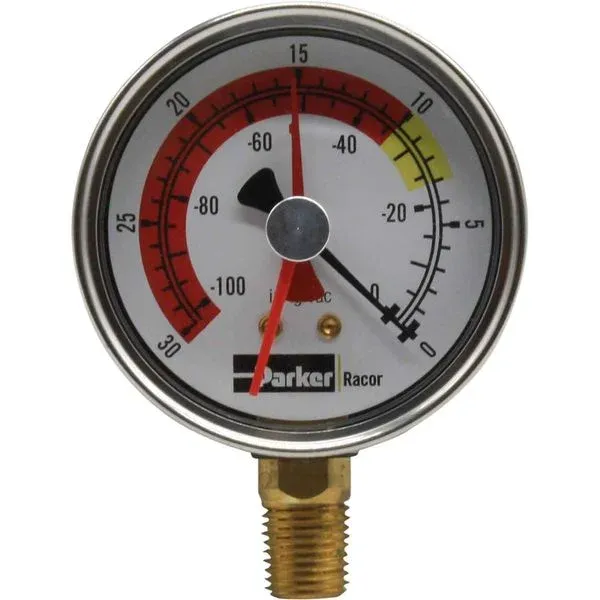

Racor vacuum gauge designed to measure pressure and restrictions inside the fuel filter. A vacuum gauge can be used to help determine when a filter element needs replacing, indicated by the gauge displays excessive resistance. This fuel filter pressure gauge features a 2-1/2″ diameter face, protected by a clear polycarbonate lens, for clear and easy readings. Instead of needle stops, this gauge uses an internal locking mechanism which prevents damage that would otherwise be caused by overpressure. Internal contamination is also tackled by seals around the fitting, the lens and the valve, to prevent any fluids from entering.
This bottom mounted gauge measures -30 to 0 “Hg.
Replaces Racor RK11-1676E.
| Bezel Colour | Stainless Steel |
| Gauge Dial | White |
| Gauge Pointer | Black|Red |
| Gauge Input | Mechanical |
| Replaces | RK11-1676E Vacuum Gauge |
| Brand | Racor |
| Series | 500, 900 & 1000 Series |
| Application | Racor Turbine 500, 900 & 1000 Series. |
| Model | RK19669 |
| Diameter | 63.5mm (2-1/2″) |
Manufacturer Part Number: RK19669
