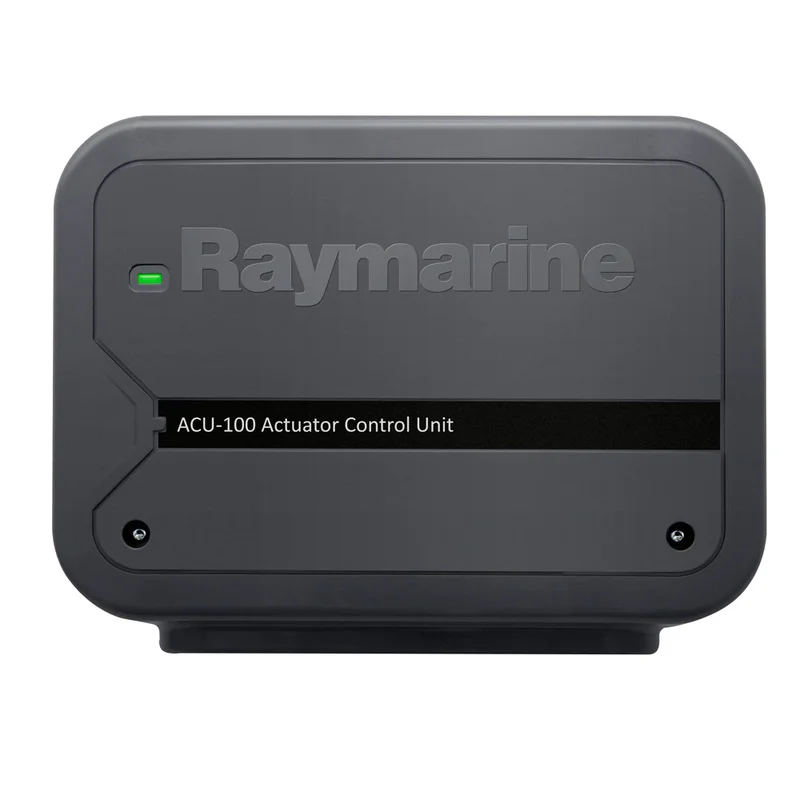

Raymarine ACU-100 Actuator Control Unit [E70098]

Description

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk
^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage

Drive Clutch Output
No clutch connection

Connections

• Rudder reference sensor
• Power
• Drive motor
• Ground

Nominal supply voltage
12 V

Operating voltage range
10.8V to 15.6V dc

Power Consumption (standby) – Main Power Supply
300 mA (12V)

Power Consumption (standby) – SeaTalk
^ng Power Supply
No power supply to SeaTalk
^ng

SeaTalk
^ng LEN (Load Equivalency Number)
1

SeaTalk
^ng Power Out
No power supply to SeaTalk
^ng

Data Connections
SeaTalk
^ng

Installation Environment

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Storage Temperature: -30°C to +70°C (-22°F to +158°F)
• Relative Humidity: MAX 93%

Waterproof rating

• Connector Panel: IPX2
• Drive Electronics: IPX6

Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)

Weight
0.6 kg (1.32lbs)

Conformance

• Europe: 2004/108/EC
• Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

• Type: Parts
• Box Dimensions: 4″H x 8″W x 12″L WT: 2 lbs
• UPC: 723193768907
