Description

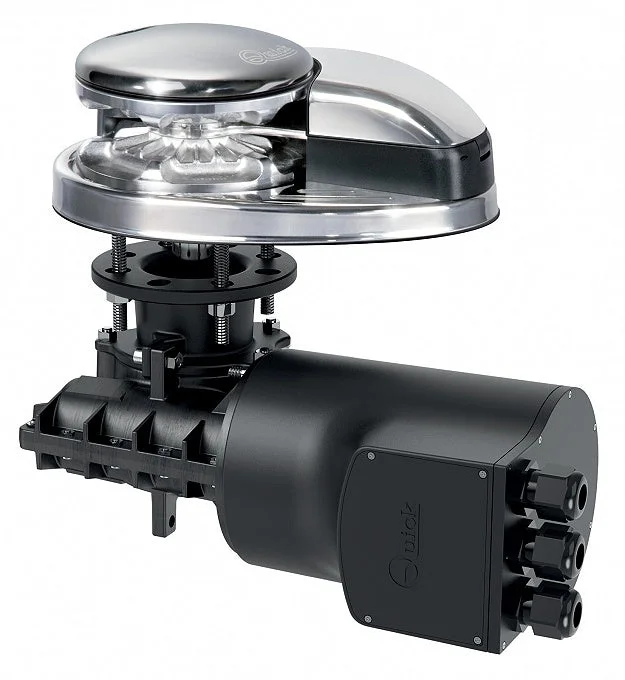

- Vertical windlasses
- Base in stainless steel AISI316

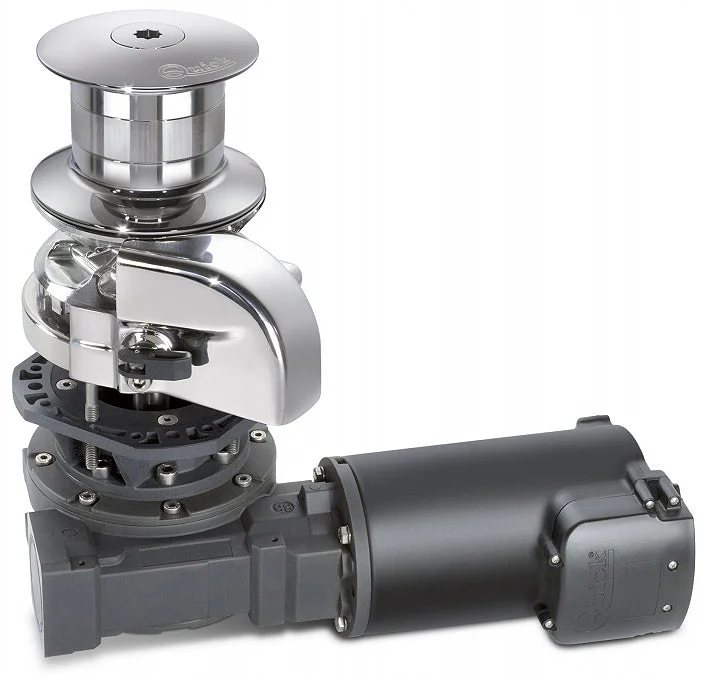

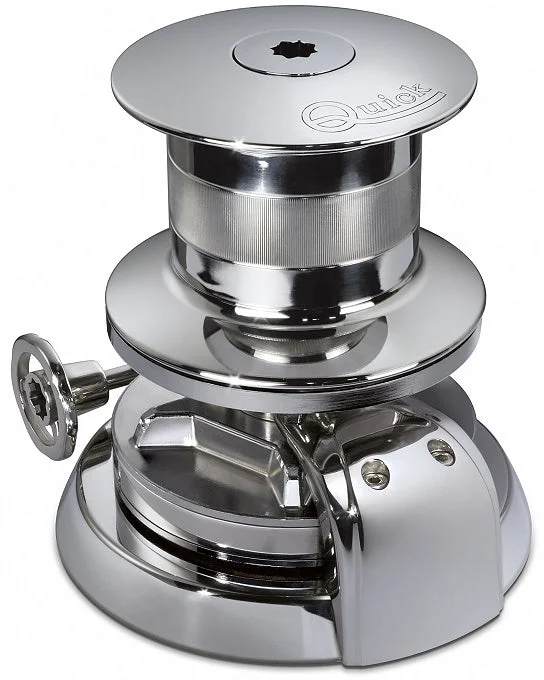

- With and without drum
- Right or left pipe chain
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- IP67 motor watertight (1700 W)
- IP66 motor watertight(2000/2300W)
- Anodized aluminium gearbox
| Regal | 1700 W DC | 12 – 18 m | 39 – 59 ft |
| Regal | 2000 W DC | 16 – 20 m | 52 – 66 ft |
| Regal | 2300 W DC | 20 – 24 m | 69 – 79 ft |
| Regal | 3000 W DC/AC | 20 – 24 m | 66 – 79 ft |
| Regal | HYDRO | 12 – 24 m | 39 – 79 ft |
| Gypsy and Drum | Ø 170 mm / 6″21/64 |
| GYPSY | 10 mm – 3/8″ | 12/13 mm | 14 mm | |||||||
| CHAIN | 10 mm | 10 mm | 3/8″ | 3/8″ | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ |
| DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | DIN 766 | ISO | G4 |
| GYPSY | 12/13 mm | 14 mm – 1/2″ | 16 mm | |||||
| CHAIN | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ | 16 mm | 16 mm |
| DIN 766 | ISO | G4 | DIN 766 | ISO | G4 | DIN 766 | ISO |
| Standard version | Regal 3000 / 3000 D |
| Motor power | 3000 W |
| Motor supply voltage | 24 V |
| Maximum pull | 3100 Kg / 6834 lb |
| Maximum working load | 1200 Kg / 2646 lb |
| Working load | 400 Kg / 882 lb |
| Current absorbtion @ working load (1) | 145 A |
| Maximum chain speed (2) | 39,2 m/min / 128.6 ft/min |
| Maximum chain speed @ working load (2) | 19,3 m/min / 63.3 ft/min |
| Weight – Regal – [without drum] | 59,4 Kg / 131 lb |
| Weight – Regal D – [with drum] | 63,8 Kg / 140.7 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 12/13 mm chain |
Dimensions
RG5 3000 X / DX
Deck thickness:
40÷80 mm (1″ 5/16÷5″ 5/32)
On request, shaft and studs can be supplied
for greater deck thicknesses.
Dimensions in mm (inch) RG5 3000 Y / DY
Deck thickness:
40÷80 mm (1″ 5/16÷5″ 5/32)
On request, shaft and studs can be supplied
for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Contactor units | Stainless steel handle | |||||||||||||||||||||
|
Optional accessories
| Hydraulic magnetic circuit breaker |
UP/DOWN Switches | handheld remote control |
Chain counters |
Radio remote control |
