Description

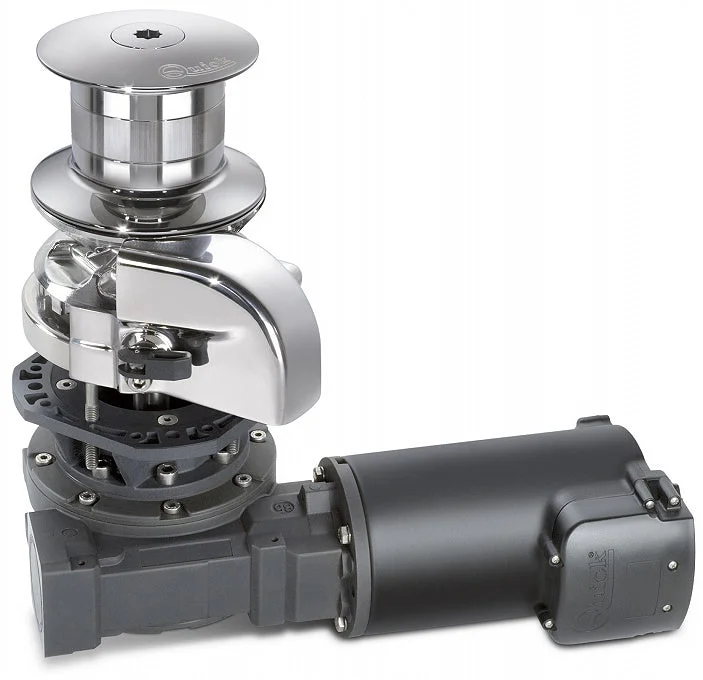

- Vertical windlasses
- Base in stainless steel AISI316
- With and without drum
- Right or left pipe chain
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- IP67 motor watertight (1700 W)
- IP66 motor watertight(2000/2300W)
- Anodized aluminium gearbox
| Regal | 1700 W DC | 12 – 18 m | 39 – 59 ft |
| Regal | 2000 W DC | 16 – 20 m | 52 – 66 ft |
| Regal | 2300 W DC | 20 – 24 m | 69 – 79 ft |
| Regal | 3000 W DC/AC | 20 – 24 m | 66 – 79 ft |
| Regal | HYDRO | 12 – 24 m | 39 – 79 ft |
| Gypsy and Drum | Ø 170 mm / 6″21/64 |
| GYPSY | 10 mm – 3/8″ | 12/13 mm | 14 mm | |||||||
| CHAIN | 10 mm | 10 mm | 3/8″ | 3/8″ | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ |
| DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | DIN 766 | ISO | G4 |
| GYPSY | 12/13 mm | 14 mm – 1/2″ | 16 mm | |||||
| CHAIN | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ | 16 mm | 16 mm |
| DIN 766 | ISO | G4 | DIN 766 | ISO | G4 | DIN 766 | ISO |
| Standard version | RY6 Hydro/ HydroD |
| Maximum pressure | 210 bar – 2900 psi |
| Maximum flow rate | 40 lt/min – 9.1 USG/min |
| Maximum lifting capacity | 2000 Kg – 4400 lb |
| Maximum chain speed | 23 m/min – 74.5 ft/min |
| Weight – Regal Hydro- [without drum] | 29 kg – 63.9 lb |
| Weight – Regal Hydro D – [with drum] | 34,4 kg – 75.8 lb |
Dimensions
RG5 Hydro X/DX
Deck thickness:
40÷80 mm (1″ 9/16÷3″ 5/32)
On request, shaft and studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch) RG5 Hydro Y/DY
Deck thickness:
40÷80 mm (1″ 9/16÷3″ 5/32)
On request, shaft and studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Technopolymer handle | |
Optional accessories
|
UP/DOWN |
Foot |
Proportional |
handheld |
Chain |
Radio remote |
