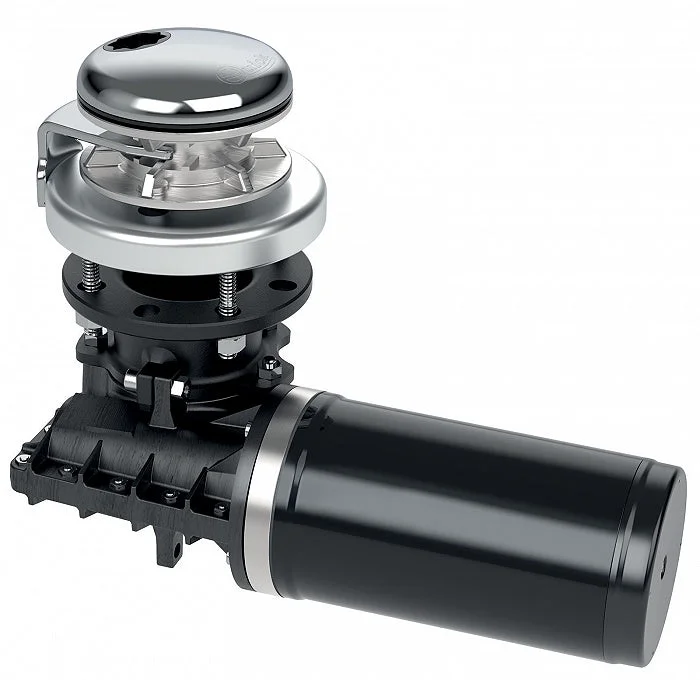

Name: Rider R1 P 512 - 500W Windlass for 12V Systems with 06mm gypsy
SKU: 15443606176118
Availability: InStock

Description

For boats from 5 to 7 metres (16 – 23 ft)
Rider	500 W – 500 W HS	5 – 7 m	16 – 23 ft

Gypsy and Drum

Ø 90 mm / 3″ 35/64

HI-SPEED version	Rider P 500 / 500 D
Motor power	500 W
Motor supply voltage	12 V	24 V
Maximum pull	660 Kg 1455 lb	660 Kg 1455 lb
Maximum working load	200 Kg 441 lb	220 Kg 485 lb
Working load	65 Kg 143 lb	70 Kg 154 lb
Current absorbtion @ working load (1)	80 A	40 A
Maximum chain speed (2)	25,2 m/min 82.7 ft/min	25,2 m/min 82.5 ft/min
Maximum chain speed @ working load (2)	18,5 m/min 59.7 ft/min	19,3 m/min 63.3 ft/min
Weight – Rider – [without drum]	7,4 Kg 16.3 lb	7,4 Kg 16.3 lb
Weight – Rider D – [with drum]	9,4 Kg 20 lb	9,4 Kg 20 lb

NEW HI-SPEED version	Rider 500 / 500 D
Motor power	500 W
Motor supply voltage	12 V	24 V
Maximum pull	600 Kg 1323 lb	600 Kg 1323 lb
Maximum working load	170 Kg 375 lb	200 Kg 441 lb
Working load	65 Kg 143 lb	70 Kg 154 lb
Current absorbtion @ working load (1)	100 A	50 A
Maximum chain speed (2)	39,0 m/min 128 ft/min	39,0 m/min 128 ft/min
Maximum chain speed @ working load (2)	28,5 m/min 93.5 ft/min	28,0 m/min 91.9 ft/min
Weight – Rider – [without drum]	7,4 Kg 16.3 lb	7,4 Kg 16.3 lb
Weight – Rider D – [with drum]	9,4 Kg 20 lb	9,4 Kg 20 lb

1)	After an initial period of use
2)	Measurements taken with a gypsy for a 6 mm chain

Deck tickness 20-30 mm (25/32″ – 1″ 3/16).
On request, shaft and studs can be supplied for greater deck thicknesses.

Contactor units

Nylon handle


Hydraulic magnetic circuit breaker	UP/DOWN control board	Foot Switches	handheld remote control	Chain counters	Radio remote control
