Description

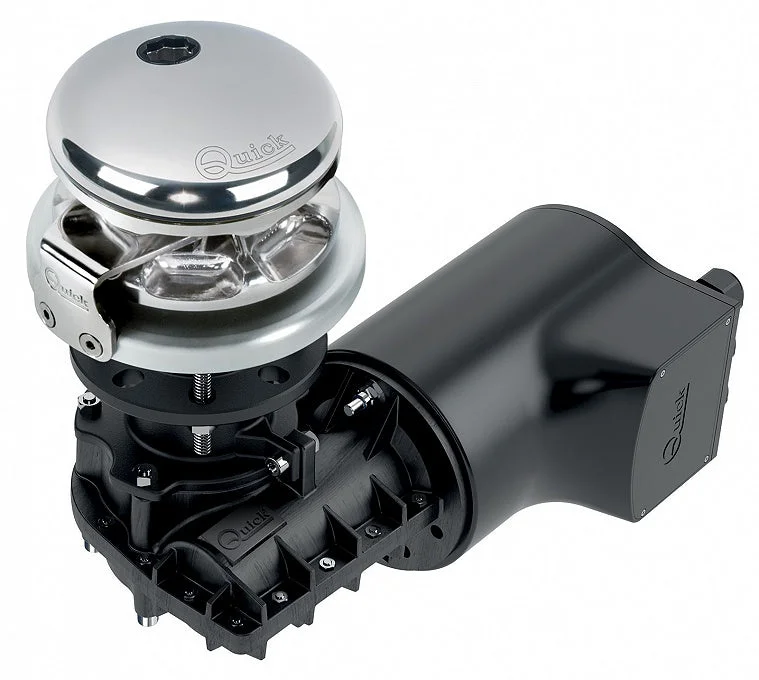

- Vertical windlasses
- Anodized aluminium base
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Motor watertight to IP67
- Anodized aluminium gearbox (1400 W)
- Technopolymer gearbox (700 W / 1000 W)
| Rider | 700 W | 7 – 10 m | 23 – 33 ft |
| Rider | 1000 W | 10 – 13 m | 33 – 43 ft |
| Rider | 1400 W | 12 – 15 m | 39 – 49 ft |
| Gypsy and Drum | Ø 130 mm / 5″1/8 |
| GYPSY | 8 mm – 5/16″” | 10 mm – 3/8″ | ||||
| CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ |
| DIN 766 | ISO | G4 | BBB | ISO (P.30) | G4 |
| Standard version | Rider 1000 / 1000 D | |
| Motor power | 1000 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 1000 Kg 2204 lb |
1000 Kg 2204 lb |
| Maximum working load | 370 Kg 816 lb |
450 Kg 992 lb |
| Working load | 120 Kg 265 lb |
150 Kg 331 lb |
| Current absorbtion @ working load (1) | 140 A | 80 A |
| Maximum chain speed (2) | 39,6 m/min 129.2 ft/min |
40,9 m/min 134.2 ft/min |
| Maximum chain speed @ working load (2) | 20,4 m/min 66.9 ft/min |
21,4 m/min 70.2 ft/min |
| Weight – Rider – [without drum] | 17,9 Kg 39 lb |
17,9 Kg 39 lb |
| Weight – Rider D – [with drum] | 19,8 Kg 43 lb |
19,8 Kg 43 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Dimensions
Supplied accessories standard
| Contactor units | Technopolymer handle | |||||||||||||||||
|
Optional accessories
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
handheld remote control |
Chain counters |
Radio remote control |
