Description

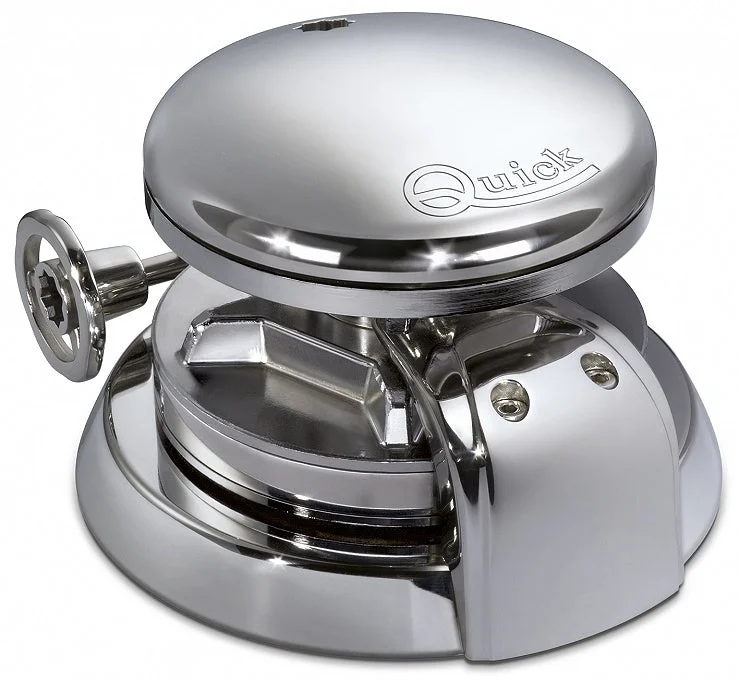

- Vertical windlasses
- Stainless steel AISI 316 base, drum and gypsy cover
- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- IP67 watertight motor (HYDRO)
- Anodized aluminium gearbox
| ROY | 3000 W DC | 18 – 26 m | 60 – 85 ft |
| ROY | 3500 W DC | 22 – 29 m | 75 – 95 ft |
| ROY | 4000 W AC | 18 – 29 m | 60 – 95 ft |
| ROY | 5500 W AC | 22 – 32 m | 75 – 105 ft |
| ROY | HYDRO | 20 – 32 m | 60 – 105 ft |
| Gypsy and Drum | Ø 200 mm / 7″ 7/8 |
| GYPSY | 12/13 mm | 14 mm – 1/2″ | 16 mm | 12,5 mm | |||||
| CHAIN | 12 mm | 13 mm | 7/16″ | 14 mm | 14 mm | 1/2″” | 16 mm | 16 mm | 12,5 mm |
| ISO | DIN 766 | G4 | DIN 766 | ISO | G4 | DIN 766 | ISO | STUDLINK |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
| Standard version | RY6 AC 4000 / 4000 D |
| Motor power | 4000 W |
| Motor supply voltage | 230/400 V AC (1) |
| Maximum pull | 4000 Kg 8818 lb |
| Maximum working load | 1500 Kg 3307 lb |
| Maximum chain speed (2) | 20 m/min 65.6 ft/min |
| Weight – Duke – [without drum] | 88 kg 194 lb |
| Weight – Duke D – [with drum] | 93 kg 205 lb |
| 1) | Available on request 230 V mono phase |
| 2) | Measurements taken with a gypsy for a 14 mm chain |
Dimensions
RY6 AC 4000/4000D
Deck thickness:
30÷60 mm
(1″ 3/16÷2″ 5/16)
On request,
shaft and studs
can be supplied
for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Stainless Steel handle |
Optional accessories
|
Brake control |
Pipe Chain |
Chain stopper |
|
Electric |
electric connection |
Foot |
handheld |
Chain |
Radio remote |
| UP/DOWN Control board |
Proportional control |
