Description
Product Overview

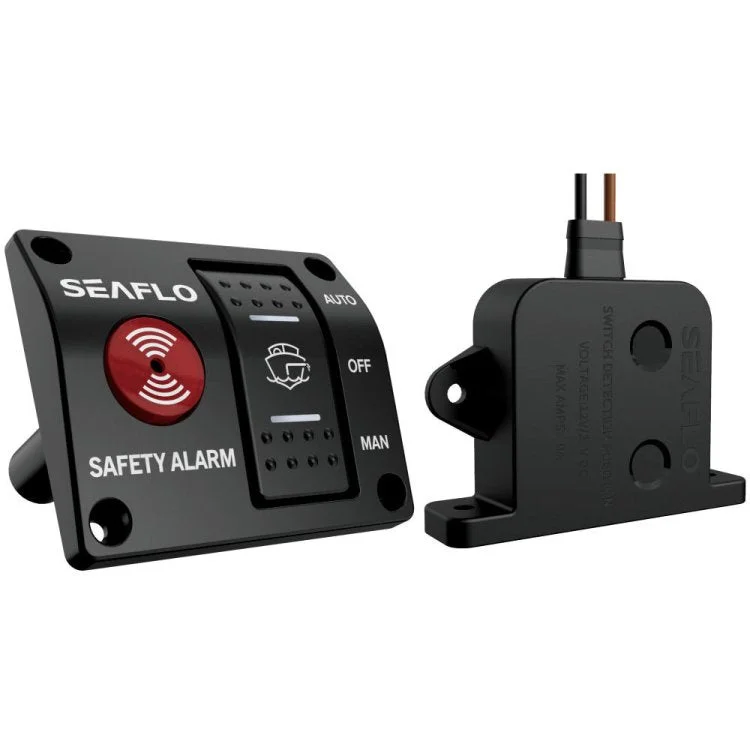

The SEAFLO electronic water level alarm control system is an intelligent safety system which incorporates a visual & auditory warning plus switch control. Used in conjunction with a water level electronic switch, when the water level in the vessel is higher than the safety line, the system will emit a red signal light, and at the same time it sounds a ≥85DB alarm. When the water level falls back to the safe level, the alarm is silenced & the light turns off.
- Detects water & sends a signal to the alarm & control panel switch
- Electric field bilge Switch is rated to handle all bilge pumps up to 10A at 24V
- Switch activates at 41 mm fluid level & deactivates at 9.5 mm fluid level
- 3 second delay prevents false starts
- Totally sealed fluid detector is never in contact with water, will not corrode & is not affected by oil or debris
- Environmentally safe – no mercury
- No moving parts
- Unique 3-way switch disables alarm while keeping warning LED lit
- Alarm Volume ≥85 DB
- MPN: SFWAS2-10-03
STANDARD CONFIGURATIONS
|
Model Number |
Voltage |
Current |
Alarm volume |
N.W. |
Wire Gauge Size /length |
|
SFWAS1-20-03 |
12V DC |
20 |
≥85DB |
0.2KG |
16AWG/1000mm (Switch) 16AWG/100mm (Alarm) |
|
SFWAS2-10-03 |
24V DC |
10 |
≥85DB |
0.2KG |
|
Selling Unit Size (L x W x H) |
8.11″ x 5.31″ x 2.75″ (20.60 x 13.50 x 7.00 cm) |
|
Selling Unit Weight |
0.50 lbs (0.23 kg) |
|
Master Carton Size (L x W x H) |
19.88″ x 13.58″ x 17.12″ |
|
Master Carton Qty |
84 pcs |
|
Master Carton Weight |
23.8 lbs (10.80 kg) |
|
Master Carton Volume |
0.083 m³ |
| Brand | Seaflo |
|---|---|
| Barcode | 6971170932849 |
