Description
Waste Pump,Compact Waste Water Diaphragm Pump,Shower Drain Pump,Sink Drain Pump
- Voltage：24V
- Open Flow：5.0GPM/19.0LPM
- Ports：38mm (1-1/2″) or 19mm(3/4″)

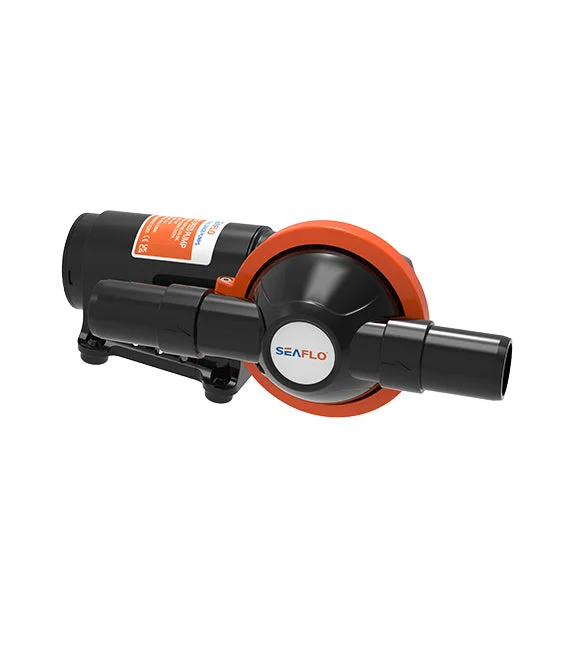

Single diaphragm waste pump designed to handle unmacerated black water toilet waste and Shower & Sink Drain Pump. Self-priming pump can be run dry. Non-choke valve, no filter required. Can pump a mixture of air and water. Double outlet valves to ensure continuous flow. Adjustable clamping ring allows the head assembly to be rotated 360 degree to accommodate plumbing position.
MORE FEATURES & BENEFITS
•Single diaphragm pump designed
•Uses multi-positional ports for easy mounting of the pump
•Flow up to 19 lpm (5 US gpm)
•Self-priming to 3m (9.5ft), dry run capability
•Connections for 38mm (1-1/2″) or 19mm (3/4″) ports
•The waste pump head assembly to be rotated 360° to accommodate plumbing
•No filter required
•Double outlet valves to ensure continuous flow
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Max Draw(A) | Ports |
Suction lift |
|
SFMTP1-07 |
12V | 5.0/19.0 | 8.0A |
38mm (1-1/2″) or 19mm(3/4″) or 25mm(1″) |
3m (9.5ft) |
|
SFMTP2-07 |
24V | 5.0/19.0 | 4.0A |
38mm (1-1/2″) or 19mm(3/4″) or 25mm(1″) |
3m (9.5ft) |
