Description

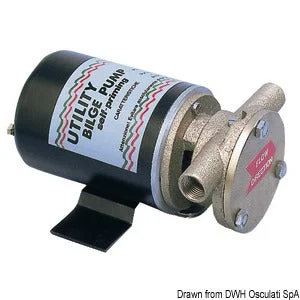

Self-priming pump with neoprene impellers. Watertight in compliance with ISO 8846 standards (it can be mounted in the engine room).
– Version A: Electrophoresis-coated engine case.
– Version B: Model MKII fitted with pump unit made of fiberglass-reinforced thermosetting resin + stainless steel internal inserts.
| Version | B | V | 12 | Flow l/min | 30 | Current draw A | 8 |
| OPTIONAL fittings | 1/2” 19 mm | Spare impeller | 16.193.73 |
View in catalogue
Related Products
| Item | Version | V | Flow l/min | Current draw A | OPTIONAL fittings | Spare impeller |
|---|---|---|---|---|---|---|
| 16.193.12 | A | 12 | 35 | 8 | 1/2” 19 mm | 16.193.73 |
| 16.193.24 | A | 24 | 35 | 4 | 1/2” 19 mm | 16.193.73 |
| 16.192.12 | A | 12 | 45 | 12 | 1/2” 19 mm | 16.193.73 |
| 16.192.24 | A | 24 | 45 | 7 | 1/2” 19 mm | 16.193.73 |
| 16.193.50 | B | 12 | 30 | 8 | 1/2” 19 mm | 16.193.73 |
Related Files
- Scheda tecnica (ITA)
- Instruction
- Technical data sheet (ENG)
- Сеrtificate
UOM: PZ
Height: 12 cm
Weight: 2.06 kg
Width: 19 cm
Cubage: 2,052 cm³
Length: 9 cm
