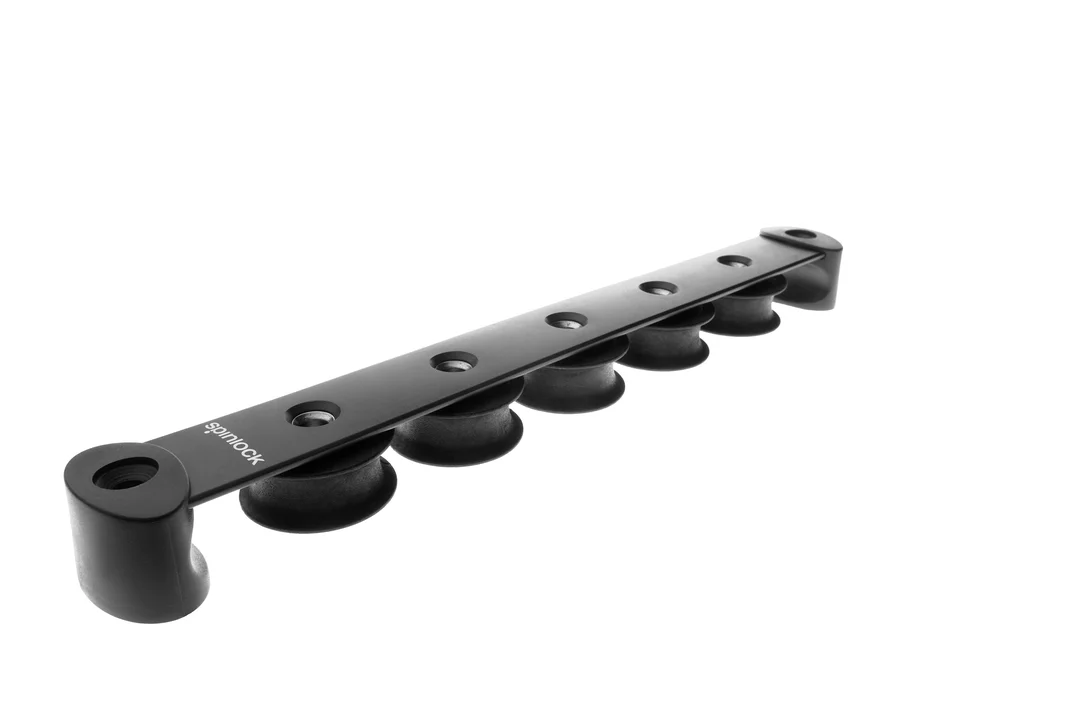

Name: T38 - For leading lines by Spinlock
SKU: 15627784847734
Availability: InStock

Description

T-Series Organisers lead multiple lines back from the mast to banks of powerclutches

Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Asymmetric version reduces deck footprint and saves weight
Can ‘stack’ for limited deck area or adding extra capacity.
Vari-camber feature: Designed to follow the curve of the deck when fitted
50mm sheave versions, T50, available

Sheave Diameter/Type38mm (1 1/2″) compositeSWL per sheave600kg (1320lbs)Total SWL per unitNo of sheaves x 300kg (660lbs)Line DiameterUp to 12mm (1/2″)Weights115g (4.0oz) for 2 sheave organiser
30g (1.1oz) per extra sheaveFasteners2 x M6 (1/4″) CSK (not supplied)

T38 Drill Guides

T25, T38 & T50 Organisers Installation

Additional information

mycustom	Select#38mm. 2 Sheave Deck Organiser, 38mm. 5 Sheave Deck Organiser, 38mm. 2 Sheave Asymmetric Deck Organiser, 38mm. 4 Sheave Deck Organiser, 38mm. 4 Sheave Asymmetric Deck Organiser, 38mm. 6 Sheave Deck Organiser, 38mm. 3 Sheave Deck Organiser, 38mm. 3 Sheave Asymmetric Deck Organiser, 38mm. 5 Sheave Asymmetric Deck Organiser, 38mm. 6 Sheave Asymmetric Deck Organiser
