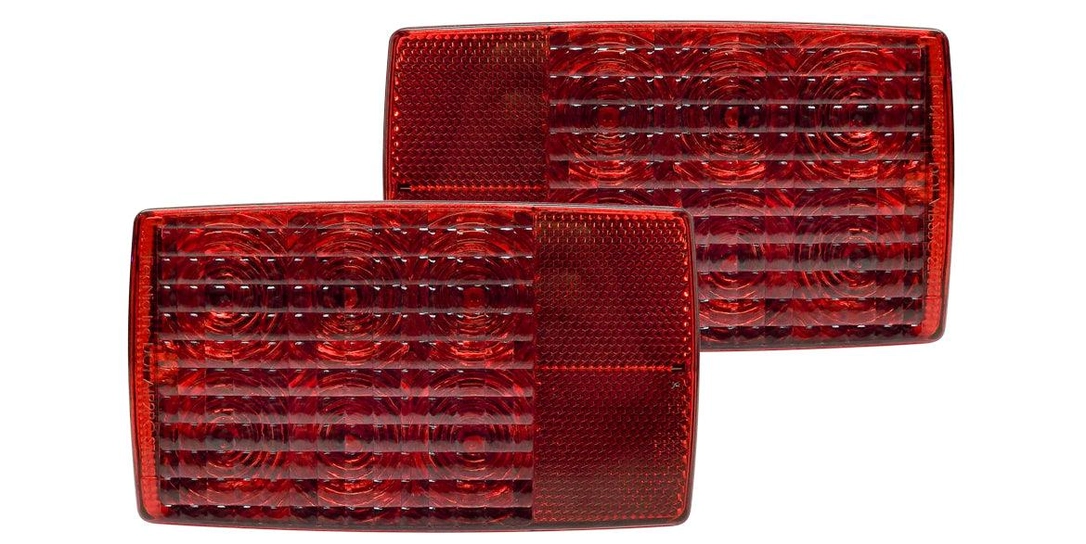

TecNiq 6″ Seven Function Box Tail Light R-Side Pigtail w Ground Ring T86-RR2RG-1

Description

T86-RR2RG-1(ONE LIGHT ONLY)

• Multi-Function 6″ low profile tail light
• TecSeal Urethane Potting – Guaranteed Circuit Board Protection
• IP68 Rated – Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include : Stop • Turn • Tail • Clearance • Side marker • Side Reflector • Rear Reflector • License Plate Light (Left)

• Dimensions:	6″ x 3.55″ x 2.2″
  LEDs:	7 +1 white license plate light on left side
  Voltage:	9 – 14V DC
  Current:	0.14A-0.20A Left 0.06A-0.09A Right + 0.11A-0.15A Brake
  Connector:	9″ Pigtail w/ ground ring
  LED Colors:	Red
  Mounting:	Uses (2) ¼-20 carriage bolts
  Wire Colors:	White Wire Ground Brown Wire Low Intensity Green Wire Right Stop/Turn Yellow Wire Left Stop/Turn
