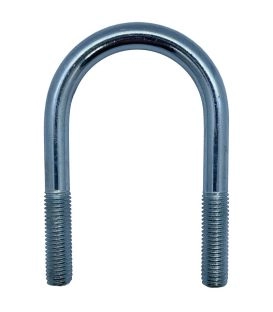

U-Bolt M16 x40 mm Thread, 220 mm Inside Diam, 264 mm Inside Height Galvanised

Description

U-Bolt M16 x40 mm Thread, 220 mm Inside Diam, 264 mm Inside Height Galvanised

Includes two nuts per leg

Graphskill standard U-Bolt

Galvanised – A duller finish than BZP, typically 50 microns thick covering of Zinc and therefore provides much more protection suitable for many outdoor applications

All Measurements in mm

Inside Diameter: 220

Inside Height: 264

Leg Centers: 236

Leg Length: 154

Material: Galvanised

Suggested Pipe OD: 218

Thread length: 40

Thread Size: M16

Our manufacturing tolerances are + / – 1 mm)

We use roll threading so the diameter of the bar is usually less than the thread size.

If using your own nuts on galvanised products please ensure they are tapped oversize to allow for the galvanised layer
