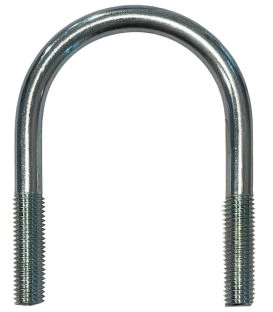

U-Bolt M24 x75mm Thread, 411mm Inside Diam, 488mm Inside Height T316 Stainless Steel

Description

U-Bolt M24 x75mm Thread, 411mm Inside Diam, 488mm Inside Height T316 Stainless Steel Includes two nuts per leg Conforms to British Standard 3974 PART 1: 1974 Fig 11A. Gripped U-bolt (Anchor) Use where it is necessary to grip the pipe in all directions T316 Stainless Steel is suitable for anywhere you would use T304 BUT has the added advantage of being suitable for marine solutions. The molybdenum increases the corrosion resistance to withstand attack from many industrial chemicals and solvents and of course chlorides All Measurements in mm Inside Diameter : 411 Inside Height : 488 Leg Centers : 435 Leg Length : 283 Material : T316 Stainless Steel (A4) Pipe Nominal Bore : 400 Suggested Pipe OD : 406.4 Thread length : 75 Thread Size : M24 Our manufacturing tolerances are + / – 1 mm) We use roll threading so the diameter of the bar is usually less than the thread size.
