Name: U-bolt With Convex Base to Minimise Crevice Corrosion For Standard Schedule Pipe Sizes
SKU: 34200
Availability: InStock

Description

U-bolt With Convex Base to Minimise Crevice Corrosion For Standard Schedule Pipe Sizes

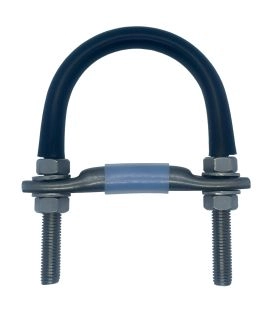

This Marine grade stainless steel u-bolt has been designed to be used in a minimum contact water repellent situation to prevent water crevice corrosion similar to the I-Rod u-bolts. The enhanced stainless base plate is convex with a silicone tube shroud. This convex surface provides almost a point contact rather than the line contact with the traditional flat support plate. Water will roll away from the pipe and not leave it standing in a pool of water which therefore minimises corrosion.

The u-bolt can be used as a grip or non-grip depending upon the arrangement of the nuts. Either both locked together underneath the convex base plate, for gripping the pipe; or, locked either side of the convex base plate to fix for non-gripping application

Although these are manufactured for BS3974 Pipe, they will of course have many other uses. Just check the full dimensions below to ensure they match your needs

Product Details (All mm / millimetres)

Size – Pipe NB	Pipe OD	U-bolt Inside Diameter (A)	U-Bolt Inside Height	Thread Size (E)	Thread Length	Length of Base Rod (C)	Leg Centers (B)	Straight Leg Length (F)
15	21.3	24	77	M6	60	48	30	65
20	26.9	29	82	M6	60	50	35	68
25	33.7	36	88	M6	65	57	42	70
40	48.3	52	104	M10	65	98	62	78
50	60.3	64	116	M10	65	110	74	84
80	88.9	94	147	M12	80	146	106	100
100	114.3	116	172	M12	80	168	128	114
150	168.3	173	240	M16	100	239	189	153
200	219.1	222	287	M16	100	288	238	176
250	273	276	351	M20	110	356	296	213
300	323.9	328	410	M20	110	408	348	246
350	355.6	360	440	M20	110	440	480	260
400	406.4	411	490	M20	110	491	431	284
450	457	460	550	M24	120	559	484	320
500	508	512	601	M24	120	611	536	345
550	559	562	654	M24	120	661	586	373
600	610	614	707	M24	120	712	638	400

Our manufacturing tolerances are + / – 1 mm)

We use roll threading so the diameter of the bar is usually less than the thread size. .

Rubber Specifications:

Platinum Silicone Rubber

SHORE A – DIN 53 505 – 60

N/mm2 – DIN 53 504 S2 – 10

ELONGATION % – DIN 53 504 S2 – 50

TEAR B N/mm – ASTM D 624 die B – 33

Density g/cm3 – DIN 53 479 A – 1.16

Data above is only to be used as a guide

U-Bolt Base Material:

A4 (T316) Marine grade stainless steel has a greater corrosion resistance than A2 in certain environments. It is often used for Marine applications especially when coming into direct contact with salt water.
Galvanised Steel – A duller finish than BZP, typically 50 microns thick covering of Zinc and therefore provides much more protection suitable for many outdoor applications. To allow for this layer you should use tapped oversized nuts
