UFlex Power A Electronic Control Package – Dual Engine/ Single Station – Mechanical Throttle/Mechanical Shift [MM21]

Description

Power A MM21 – Electronic Control Package

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug’N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

MM21 Package Includes:

• 42011T –

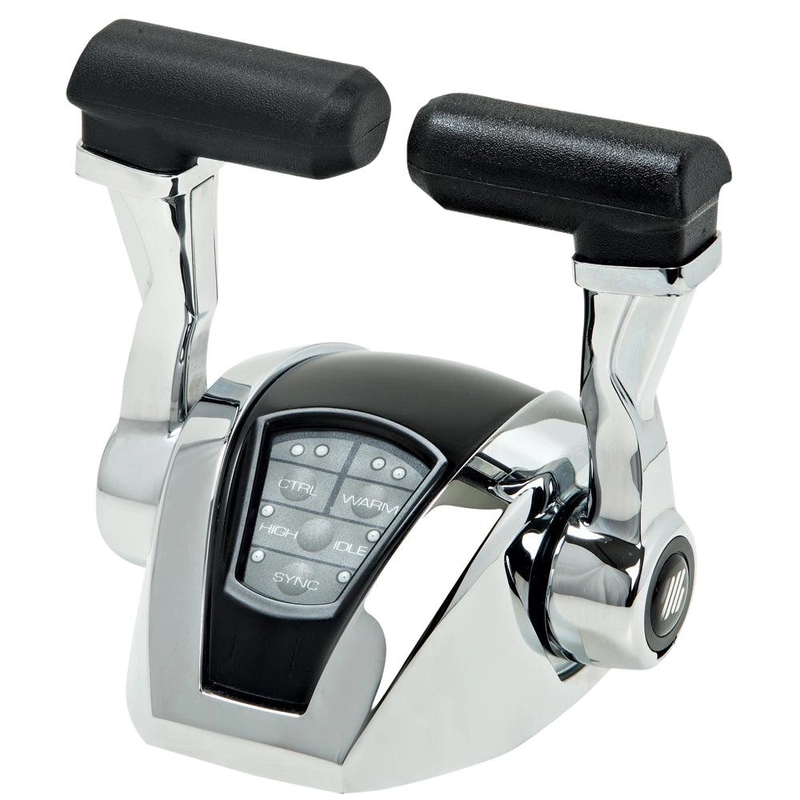

  (1) PA2-B2 – Dual Lever Control w/o Trim
• 42017F –
  (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
• 42027J –
  (4) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
• 42028L –
  (1) PA2-NT – Network Terminator
• 42053K –
  (1) M-P3 – Main Power Supply Cable, 9.8′
• 71021K –
  (2) CAN-10 – Network Connection Cable 33′
• 73639T –
  (3) CAN-1 – Network Connection Cable 3′
• 42026G –
  (1) PA2-PU – Power Supply Unit f/12V Systems
• 42056S –
  (4) M-PE1 – Power Extension Cable 3.3′
