Description
Designed for vertical handling, it has an independent capstan for retrieval of a secondary rope/chain rode or to assist with docking procedures.

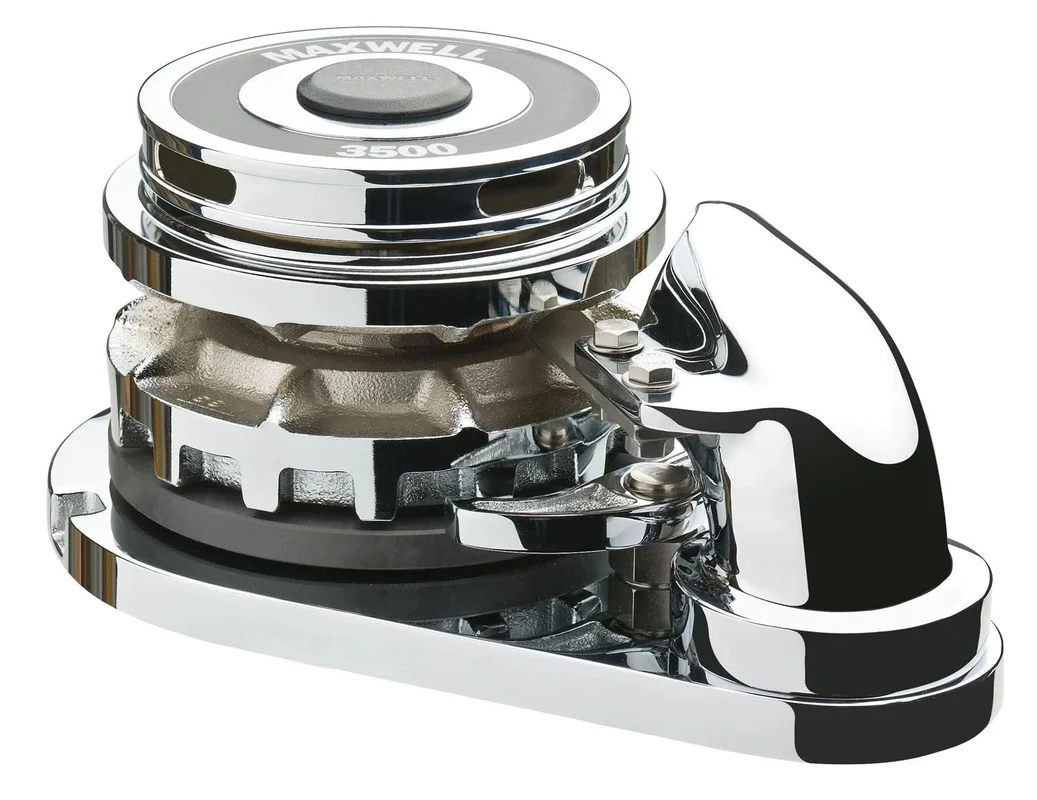

The VWC Series is designed for automatic vertical
handling of chain-only anchor rodes while offering
an independent capstan for the retrieval of a
secondary rope and chain rode or to assist with
docking procedures.
Fully automatic single or dual direction chainwheel operation
High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316), for long term durability
Integral chain pipe and stripper are aligned for virtually jam-free operation providing automatic feed of chain into and out of the anchor locker
Port and starboard chain pipes for twin installations (Sizes 2500 and above only)
Cone-type brake/clutch mechanism permits manual ‘free fall’ anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control
Chainwheel locking pawl
Optional Band Brake available for 3500 series unit
Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the Max-grip™ snagfree warping drum for positive control of all ropes
Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marinegrade stainless steel bolts
Anodized aluminium gearbox and spacer tube on all models.
Heavy duty, dual direction motor, designed for marine winches
Low Profile configurations (no warping drum) are available
Specifications
| Motor (W) |
1200 |
| Motor (W) |
1200 |
| Voltage (V) |
12 |
| Voltage (V) |
12 |
| Vertical/Horizontal |
Vertical |
| Vertical/Horizontal |
Vertical |
| Rope/chain |
Chain |
| Rope/chain |
Chain |
| Drum |
No |
| Drum |
No |
| Maximum pull/lift (lbs) |
1870 |
| Chain short link (inches) |
1/4 – 3/8 |
| Chain (inch) |
1/4 – 3/8 |
| Maximum pull/lift (kg) |
850 |
| Maximum pull/lift (kg) |
850 |
| Chain short link (mm) |
6 -10 |
| Chain short link (mm) |
6 -10 |
| Chain (mm) |
6-10 |
| Chain (mm) |
6-10 |
