Description

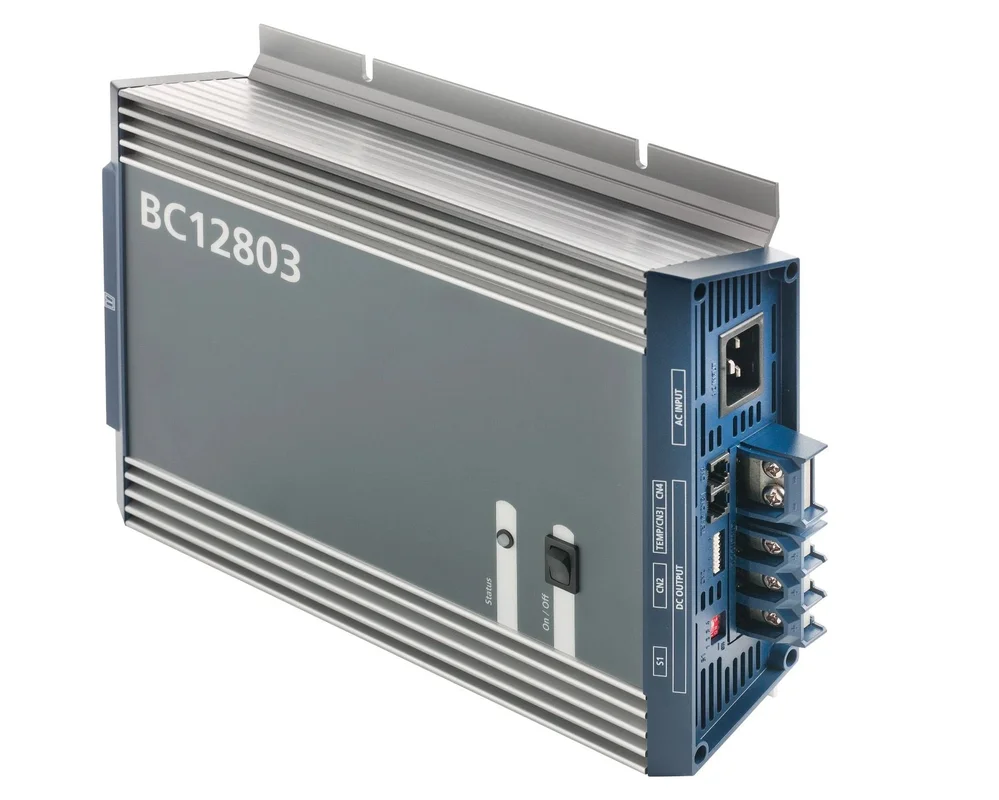

80A, 3 output. Four-stage IUoU charge-programmed battery battery chargers, especially designed for marine use, have a four stage IUoU charge programme. In the first Bulk charge stage, the battery receives a continuous maximum current charge. Once the battery is recharged to approximately 75% of its full capacity, the charger switches automatically to a constant voltage Absorption stage for the remain. When the battery is fully charged, the charger will maintain this charge phase for 15 minutes. (providing the charge is under 6.25 % of the full charge current) and then switches over to the Float. charge stage. In this stage the battery charger maintains the full charge without overloading the battery. It compensates for self-discharge and “floats” any loads on the battery. After being in the float stage for 12 days, the charger implements the final Reconditioning stage. In this stage the charger will switch to the Bulk stage for 85 minutes only, to ensure that the battery stays in optimum condition. With easy access dipswitches, the maximum charge voltage can be adapted to suit the type of battery being charged. These chargers are suitable for all AC power sources from 90 V to 265 V. The active Power Factor Correction feature takes care of any unwanted line disturbances. Vetus battery chargers are extensively tested, including a 2G vibration test, to meet our quality standards and ensure long term operation. These new chargers are compatible with Lead Acid, Li-ion, Gel and AGM batteries, and can be connected to a remote control panel (BCRP) and a battery temperature sensor (BCTS). The chargers have a separate alarm contact and the fan speed can be adjusted for comfort reasons. A trickle charger with maximum output of 2A is provided on models BC12151, BC12252 and BC12352.
Specifications
| Length (inches) | 9,3125 |
| Height (inches) | 3,5625 |
| Length (mm) | 237 |
| Length (mm) | 237 |
| Height (mm) | 90 |
| Height (mm) | 90 |
| Standard Boost / Charge Voltage | 14.4 / 14.7 |
| Standard Boost / Charge Voltage | 14.4 / 14.7 |
| Standard Float / Charge Voltage | 13.8 / 13.5 |
| Standard Float / Charge Voltage | 13.8 / 13.5 |
| Main Rated Current | 80 |
| Main Rated Current | 80 |
| Single Output Current Limit | 40 |
| Single Output Current Limit | 40 |
| Main Output (ESB) | 3 |
| Main Output (ESB) | 3 |
Support & manuals
Installation and user manual Battery charger BC
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
