Description

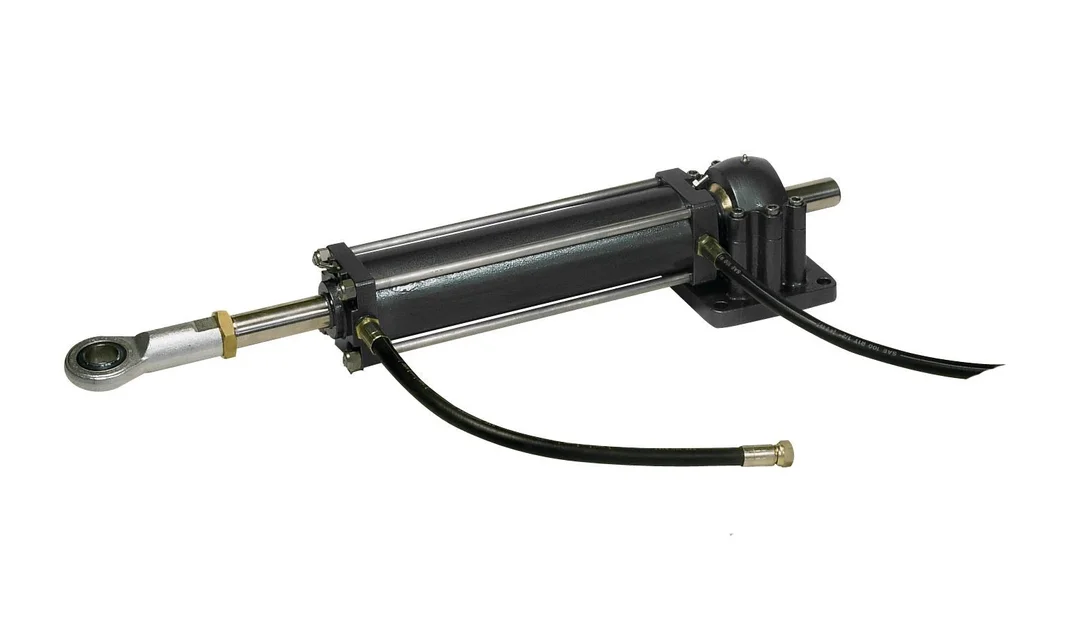

This cylinder has a base plate with a universal joint and swivelling rod end, so that alignment mistakes can be absorbed. Bleed nipples also included.
Specifications
| Purpose | Commercial |
| Purpose | Commercial |
| Stroke (inches) | 7 7/8 |
| Stroke (mm) | 200 |
| Stroke (mm) | 200 |
| Cylinder volume (cubic inches) | 80 1/2 |
| Length of tiller arm (inches) | 6 7/8 |
| Length of tiller arm (mm) | 175 |
| Length of tiller arm (mm) | 175 |
| Weight (lbs) | 77.4 |
| Weight (kg) | 35,1 |
| Weight (kg) | 35,1 |
| Max. torque (Nm) | 5886 |
| Max. torque (Nm) | 5886 |
Support & manuals
DoC Hydraulic cylinder MT, MTC
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue





Reviews
There are no reviews yet.
