Description

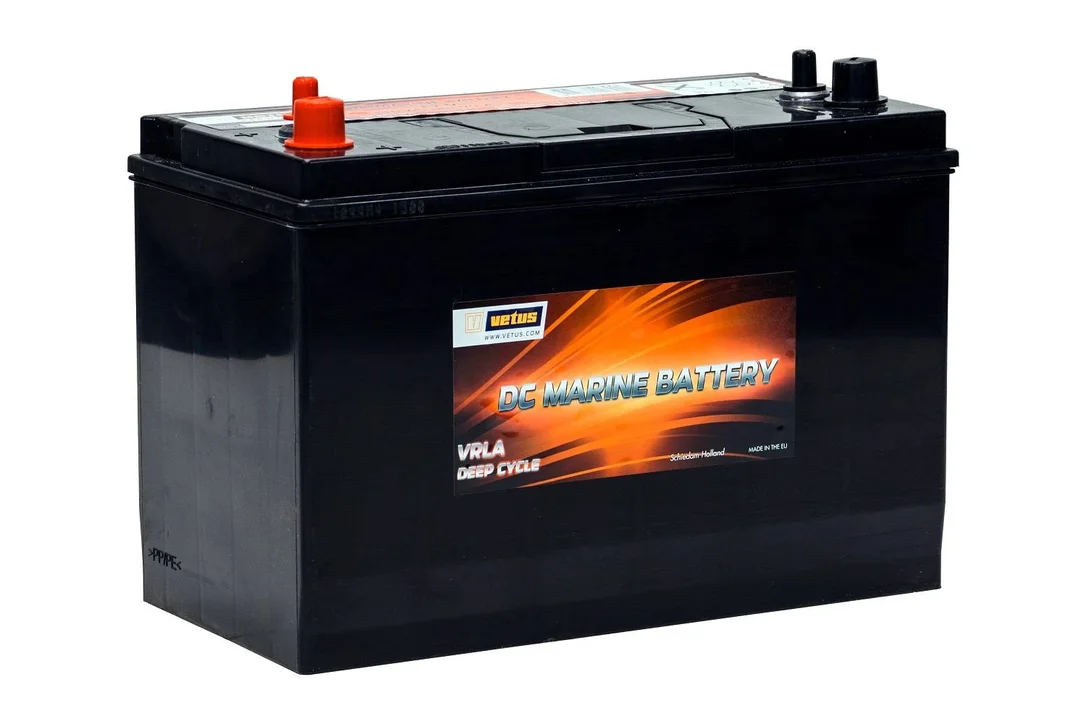

The VEDC110TC is a group 31 ‘Deep Cycle/Semi-traction’ battery featuring two different type of deep cycle battery is ideal for applications such as electric propulsion. The VEDC110TC is a group 31 ‘Deep Cycle/Semi-traction’ battery featuring two different connections: one set of conventional tapered battery clamp connections and one set of threaded connections (5/16“) for cable lugs. Thicker plates inside the battery allow deeper discharging (up to 75%) compared to conventional batteries andenable it to be used for cyclic applications. These charecteristics mean the battery is ideal for electric boating where the battery is discharged over a longer period of time.
Highlights:
Specifications
| Cold cranking amps CCA (EN) | 700 |
| Cold cranking amps CCA (EN) | 700 |
| Reserve capacity (minutes) at 25A | 200 |
| Reserve capacity (minutes) at 25A | 200 |
| Capacity C20 (Ah) | 110Ah |
| Capacity C20 (Ah) | 110Ah |
| Capacity C5 (Ah) | 90Ah |
| Capacity C5 (Ah) | 90Ah |
| Voltage (V) | 12 |
| Voltage (V) | 12 |
| Weight (lbs) | 61.7 |
| Length (inches) | 13 |
| Height (inches) | 9 1/4 |
| Width (inch) | 6 7/8 |
| Weight (kg) | 28 |
| Weight (kg) | 28 |
| Length (mm) | 330 |
| Length (mm) | 330 |
| Height (mm) | 235 |
| Height (mm) | 235 |
| Width (mm) | 175 |
| Width (mm) | 175 |
