Description

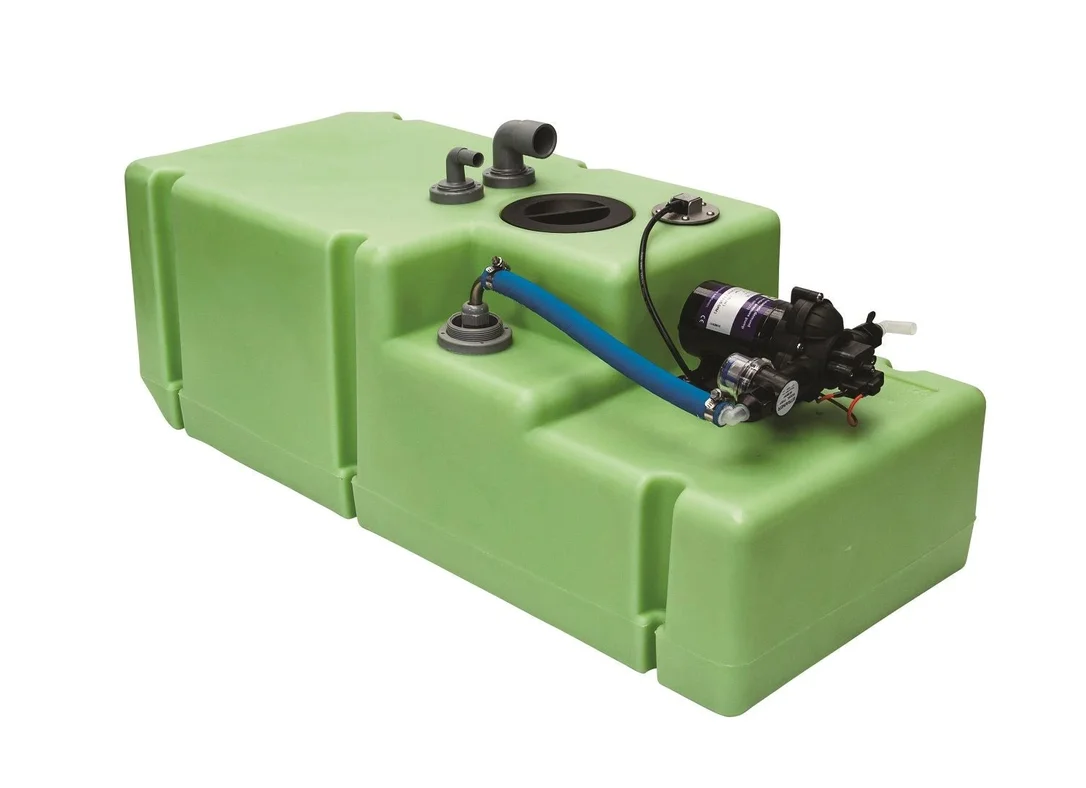

This high-grade synthetic tank for drinking water is supplied with an electric pump which automatically switches on when the pressure in the system drops (for example, when a tap is opened).This high-grade synthetic tank for drinking water is supplied with an electric pump which automatically switches on when the pressure in the system drops (for example, when a tap is opened). The installation of a DWS tank saves valuable time, as only the hoses and power supply have to be connected. The premium drinking water system offers a high degree of usability. All connections for filling pipe 38mm diameter suction and 16mm diameter ventilation are supplied pre-installed, together with a filter in the suction line and a float sensor to connect a level gauge. An inspection cover enabling the inside of the tank to be cleaned is also fitted as standard. This system has a tank capacity of 42lt. The 24V motor has an output of 13.2lt/min at zero head.
Specifications
| Rigid/flexible tank | Rigid |
| Rigid/flexible tank | Rigid |
| Suitable for | Fresh water |
| Suitable for | Fresh water |
| Voltage (V) | 24 |
| Voltage (V) | 24 |
| Capacity (gallons) | 11.1 |
| Length (inches) | 24 |
| Height (inches) | 15 3/4 |
| Width (inch) | 13 3/4 |
| Capacity (litres) | 42 |
| Capacity (litres) | 42 |
| Length (mm) | 610 |
| Length (mm) | 610 |
| Height (mm) | 400 |
| Height (mm) | 400 |
| Width (mm) | 350 |
| Width (mm) | 350 |
| Pump capacity (gallons/minute) | 3.49 |
| Pump capacity (litres/minute) | 13,2 |
| Pump capacity (litres/minute) | 13,2 |
Support & manuals
Installation and user manual Fresh water tank systems DWSC
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
