Description

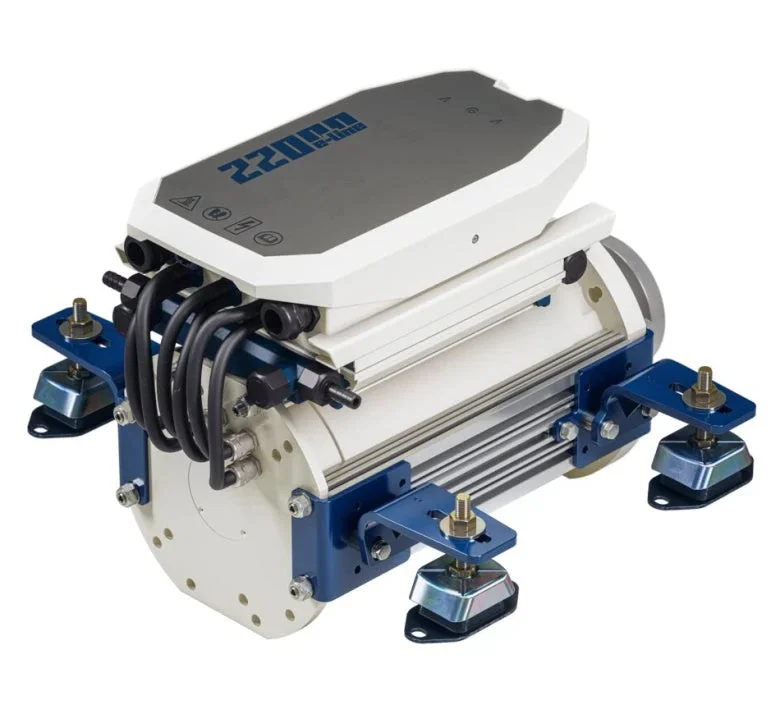

The E-LINE 22kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduces energy consumption.
It delivers the highest output within our electric range and is suitable for every vessel with a shaft drive, whether newly built or undergoing a refit. This makes it the ideal choice for boaters who value strong performance, excellent efficiency and complete freedom on the water.
This electric propulsion set is supplied as a complete system that is ready to install. In addition to the motor, this electric propulsion set with code ELINE220S includes essential components such as cables and standard monitoring equipment. It provides a full out of the box solution that requires only the selection of your preferred control lever and cooling system.
Set consists of
- E-LINE 22 kW motor
- V-CAN monitoring panel
- V-CAN key switch panel
- Converter – 48VDC-12VDC, 360W
- V-CAN cable 1 m, halogen free
- V-CAN-bus 3-point hub
- V-CAN termination resistor
- V-CAN cable 5 m, halogen free
Choose your cooling
The E-LINE 22 kW can be cooled with fresh surface water or a keel cooler. Use surface water cooling in clean fresh water. In salty or contaminated water, two keel coolers are recommended.
- Keel cooling system; EDKCSET
- Fresh water cooling system; EDFWSET
Advanced Monitoring Sets
Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and positioning you can become the master of your vessel.
Specifications
| Max. speed (RPM) | 1600 |
| Max. torque (Nm) | 130 |
| Motor type | Brushless induction motor |
| Voltage (V) | 48 |
| Indicative comparable combustion engine (hp) | 30 |
| Indication for suitable boat length | Up to 15 m (50 feet) or 20 ton |
| CAN bus | V-CAN |
| Maximum output power | 22 kW |
| Maximum input current draw | 580 A |
| Indicative energy consumption | 1 kWh @ 6 km/u (3,5 kt) |
| Cooling systems | Liquid cooled |
| Liquid cooling system connections | 12,7 mm (1/2”) (intake and outlet) |
| Weight (kg) | 93 |
| Length (mm) | 545 |
| Height (mm) | 371 |
| Width (mm) | 540 |
Installation manual E-LINE ELINE220M
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
