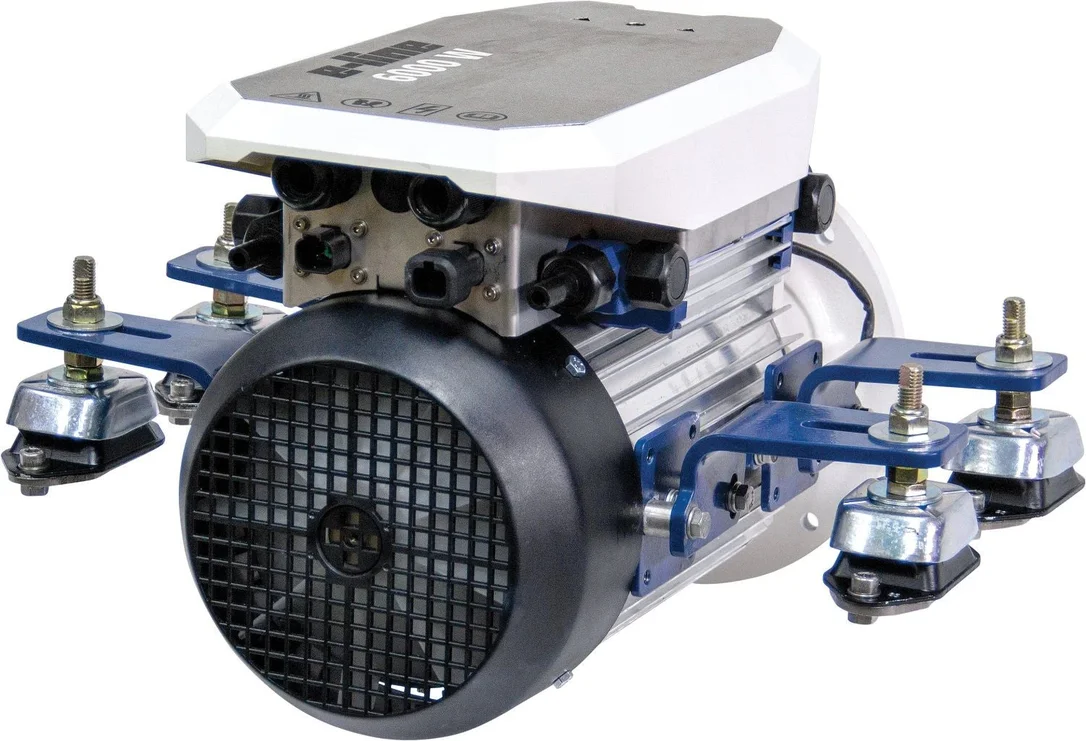

VETUS E-LINE 6kW Inboard Electric Propulsion Motor (ELINE060)

Description

The E-line 6kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption.

The Motor brings you peace and tranquility when cruising on the water without being distracted. Designed to be energy-efficient, the system requires less battery capacity compared to traditional electricmotors. This facilitates a more compact installation, without compromising on performance. To ensure optimal performance and prevent overheating, the motor is equipped with a liquid cooling system. This helps maintain a stable operating temperature, enhancing the motor’s longevity and motor features Active Electronic Braking, which offers rapid deceleration and precise control, enhancing safety and a peak power of 7,3 kW, you’ll have the acceleration youdesire. Whether you’re exploring open waters or navigating tight spaces, this motor will provide the responsiveness you need.

Supplied With

• Swap & Go motor brackets and motor mounts type EMX65.
• Integrated thrust bearing.
• Mounting flange 4″ suitable for Combiflex 12, Bullflex type 1.
• MPE1KB key switch – all-in-one solution; V-CAN power supply, external 12 VDC power supply and anti-theft.
• MPE1MBV monitoring panel – V-CAN monitoring, battery indication, motor alarms and motor status.
• IV4812360 converting 48 VDC to the required V-CAN power supply 12 VDC.

Additional Parts Required

• One of the E-Drive V-CAN
  Control Lever with different propulsion modes to enable the right power at the right moment.
• The closed circulation keel cooling system for all water
  (EDKCSET) or;
• The fresh water cooling system for fresh water
  (EDFWSET).

Advanced Monitoring Sets

• Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and postioning you can become the master of your vessel.
• Choose from a wide variety of monitoring sets that suit your needs the best.

Specifications

Support & manuals

User manual E-LINE ELINE060, ELINE080, ELINE110DoC E-LINE ELINE060, ELINE080, ELINE110VETUS E-DRIVE configuratorInstallation manual E-LINE ELINE060, ELINE080, ELINE110Installation form Electric drive
