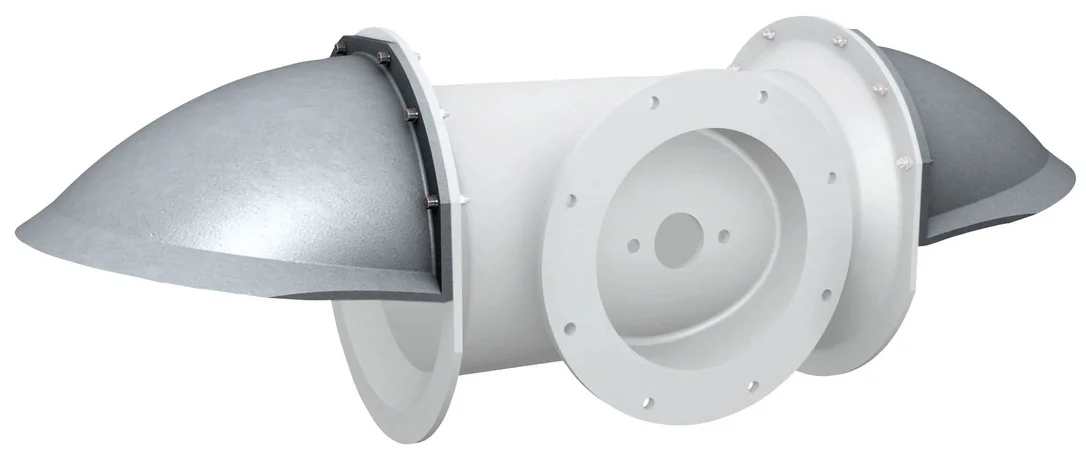

VETUS Extension kit for stern thruster, 300mm (SDKIT300)

Description

This kit ensures that the propeller is submerged well below the waterline so that the stern thruster functions 300mm tunnel the stern thruster to function correctly, it is important that the propeller is submerged well below the waterline. If this is not the case, the propeller may suck air into the tunnel, with a considerable loss of thrust power as a consequence. However, on some boats this is not really feasible, because the draught at the stern is too shallow and because the thruster assembly should never protrude beneath the bottom of the boat. In order to ensure both tunnel openings are sufficiently below the waterline, VETUS has developed an extension kit for stern thrusters. This kit consists of two shells made of GRP, together with all the necessary stainless steel fastenings. The kit can be easily retrofitted to existing installations. It should be used if the transom is fitted with other equipment, which may prevent unhindered water flow through the tunnel. It is also ideal for so-called ‘house boats’, which in general have a very shallow draught both at the bow and at the stern.

Specifications

Support & manuals

Installation manual Extension kit for stern thrusters SDKIT
