Description

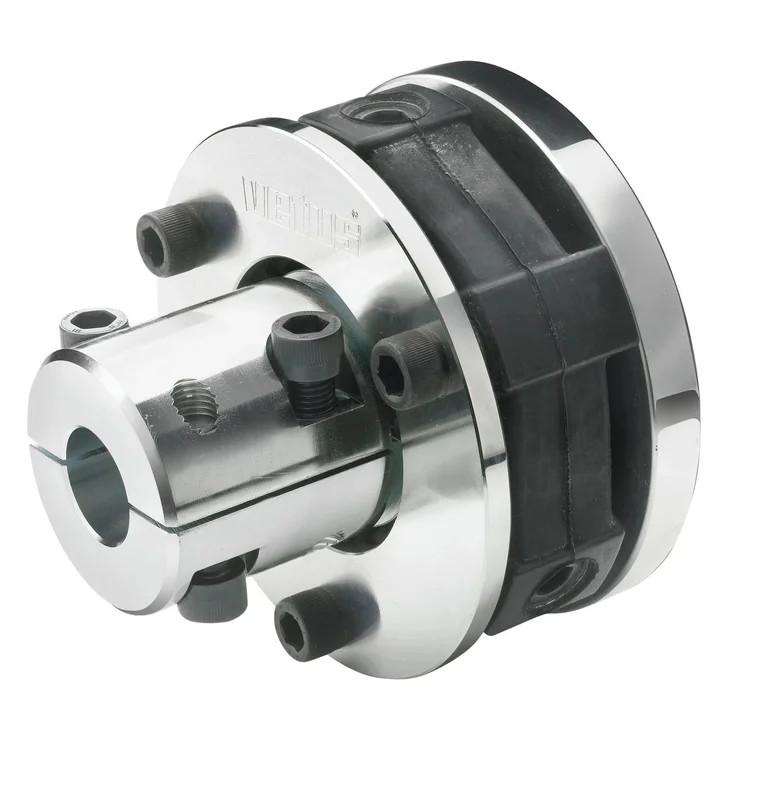

The BULFL322 ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.
Specifications
| Shaft diameter (inches) | 40, 50, 60, 70 |
| Diameter (inches) | 10 15/64 |
| Height (inches) | 10 23/64 |
| Shaft diameter (mm) | 40, 50, 60, 70 |
| Shaft diameter (mm) | 40, 50, 60, 70 |
| Diameter (mm) | 260 |
| Diameter (mm) | 260 |
| Height (mm) | 263 |
| Height (mm) | 263 |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 23.0 (31.3) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 23.0 (31.3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 18.6 (25.3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 18.6 (25.3) |
Support & manuals
Installation manual Flexible propeller shaft coupling BULLFLEX
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
