Description

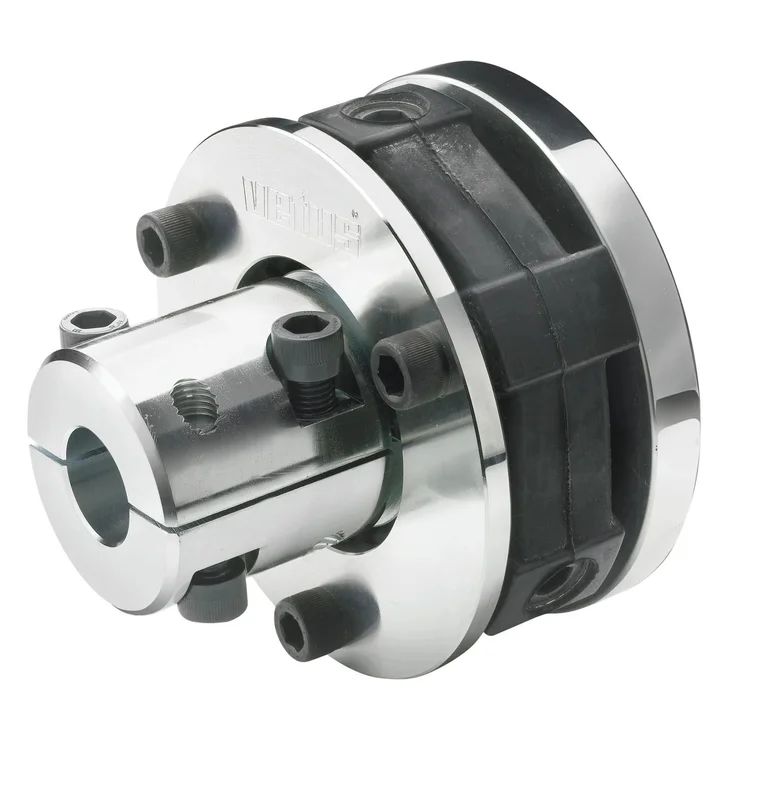

The BULFL0425 ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.
Specifications
| Shaft diameter (inches) | 0.98 |
| Diameter (inches) | 5 29/32 |
| Height (inches) | 6 |
| Shaft diameter (mm) | 25 |
| Shaft diameter (mm) | 25 |
| Diameter (mm) | 150 |
| Diameter (mm) | 150 |
| Height (mm) | 152 |
| Height (mm) | 152 |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 3,1 (4,3) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 3,1 (4,3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 2,1 (2,8) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 2,1 (2,8) |
Support & manuals
Installation manual Flexible propeller shaft coupling BULLFLEX
