Description

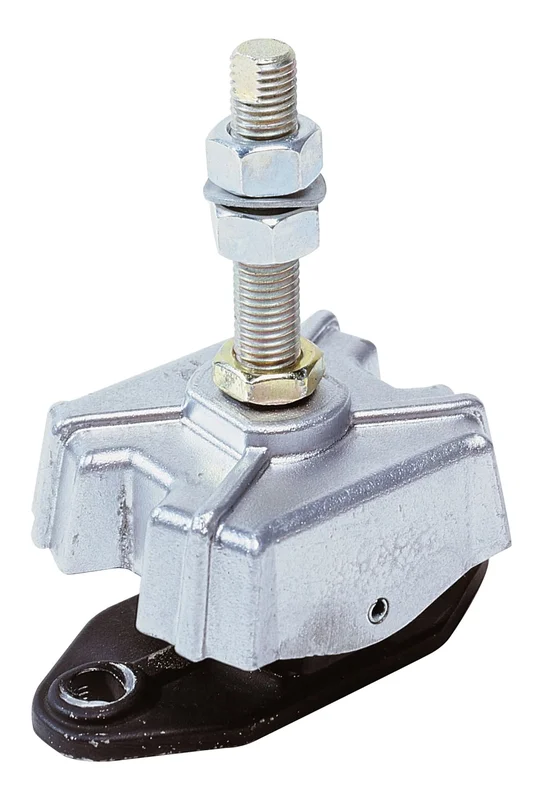

Type K40 has a relatively soft, rubber compound which fulfils the requirements of lightweight vessels with a modern 3-cylinder marine diesel engine.
The rubber elements create an optimum in vibration dampening. Type KSTEUN40 features internal buffers which limit the marine engine movements when started or stopped. It is also secured against overload and shearing off.
Specifications
| Hardness in ° Shore | 50 |
| Hardness in ° Shore | 50 |
| Height (inches) | 5 1/8 |
| Height (mm) | 130 |
| Height (mm) | 130 |
| Min. load (lbs) – static | 55.12 |
| Min. load (kg) – static | 25 |
| Min. load (kg) – static | 25 |
| Max. load (lbs) | 88 |
| Max. load (kg) | 40 |
| Max. load (kg) | 40 |
Support & manuals
Installation manual Flexible engine mountings KSTEUN, MITSTEUN, HY, LMX
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
