Description

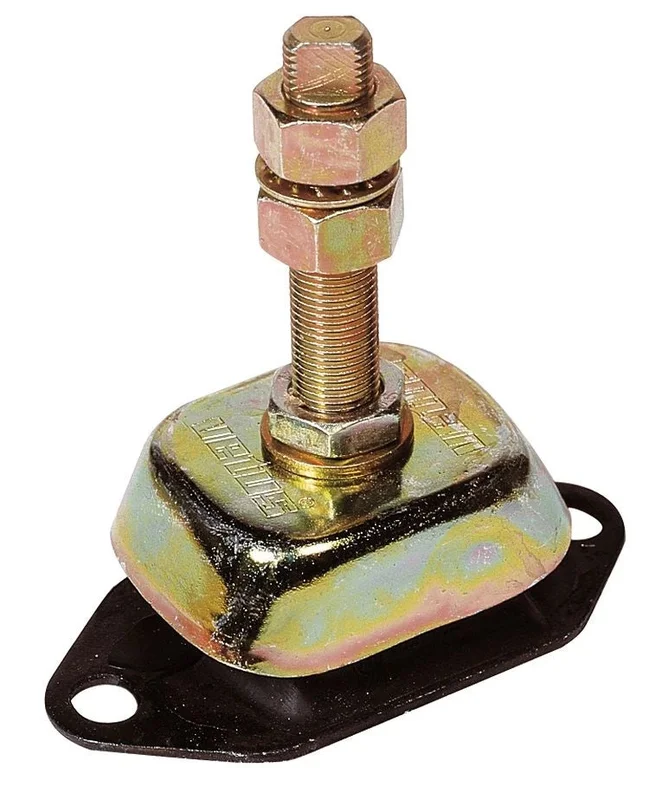

This flexible mounting contains a special rubber compound with excellent vibration damping properties. It has a maximum load of 50 kg.
Specifications
| Hardness in ° Shore | 45 |
| Hardness in ° Shore | 45 |
| Height (inches) | 4 51/64 |
| Height (mm) | 122 |
| Height (mm) | 122 |
| Min. load (lbs) – static | 55.12 |
| Min. load (kg) – static | 25 |
| Min. load (kg) – static | 25 |
| Max. load (lbs) | 110 |
| Max. load (kg) | 50 |
| Max. load (kg) | 50 |
Support & manuals
Installation manual Flexible engine mountings KSTEUN, MITSTEUN, HY, LMX
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
