Description

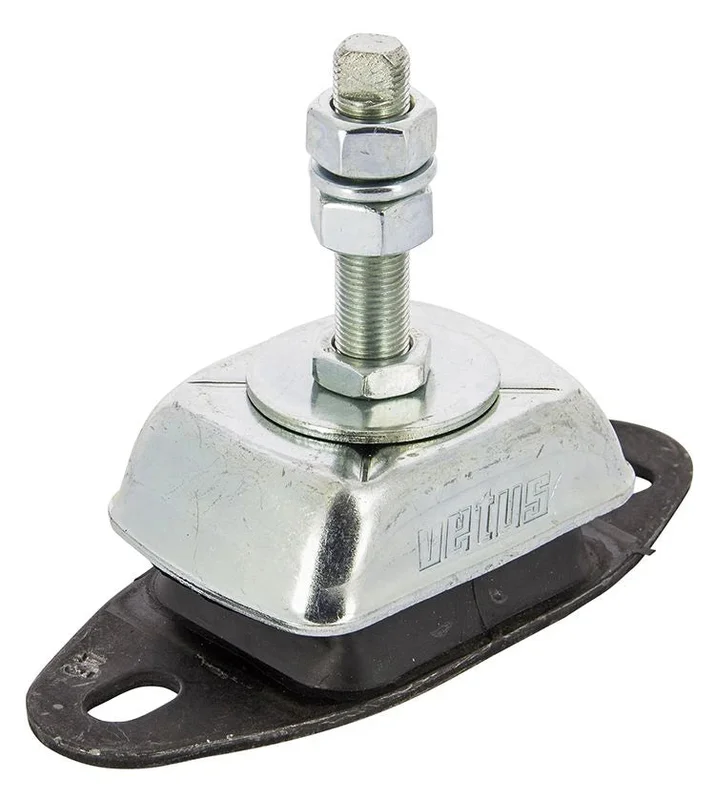

This sturdy vibration damper has a maximum load of 100kg and is suitable for engines in the power range between 30 – VETUS type HY100 engine mounting is extremely suitable for application with marine diesel marine diesel engines by virtue of a low vertical stiffness, combined with high stiffness in the longitudinal direction. This sturdy vibration damper is suitable for marine engine in the power range between 30 – 125kW (40 – 170hp), whether or not provided with a thrust bearing.
Specifications
| Hardness in ° Shore | 35 |
| Hardness in ° Shore | 35 |
| Height (inches) | 5 1/8 |
| Height (mm) | 130 |
| Height (mm) | 130 |
| Min. load (lbs) – static | 88 |
| Min. load (kg) – static | 40 |
| Min. load (kg) – static | 40 |
| Max. load (lbs) | 220 |
| Max. load (kg) | 100 |
| Max. load (kg) | 100 |
Support & manuals
Installation manual Flexible engine mountings KSTEUN, MITSTEUN, HY, LMX
