Description

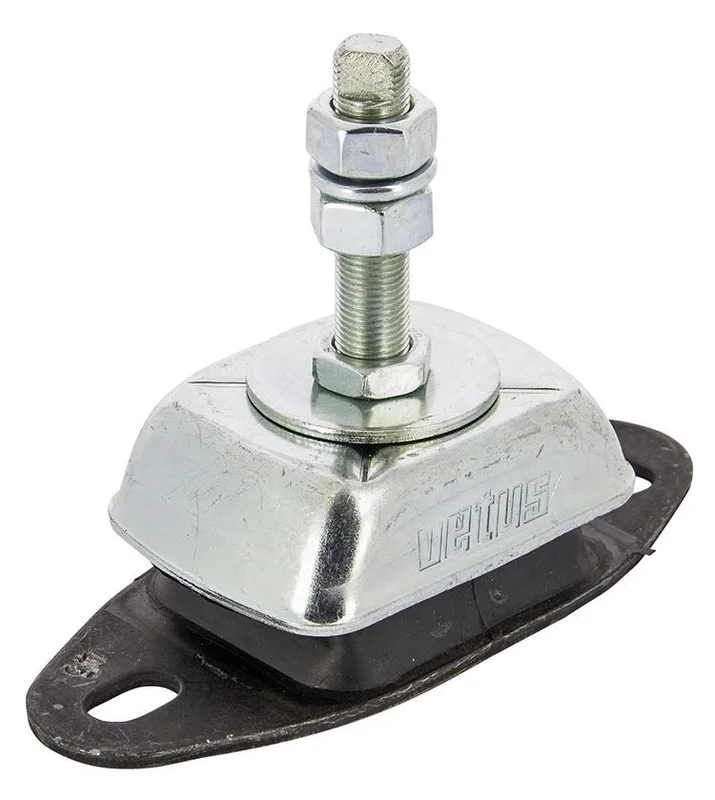

This sturdy vibration damper has a maximum load of 150kg and is suitable for engines in the power range between VETUS type HY150 engine mounting is extremely suitable for application with marine diesel marine diesel engines by virtue of a low vertical stiffness, combined with high stiffness in the longitudinal direction. This sturdy vibration damper is suitable for marine engine in the power range between 30 – 125kW (40 – 170hp), whether or not provided with a thrust bearing.
Specifications
| Hardness in ° Shore | 50 |
| Hardness in ° Shore | 50 |
| Height (inches) | 5 1/8 |
| Height (mm) | 130 |
| Height (mm) | 130 |
| Min. load (lbs) – static | 132 |
| Min. load (kg) – static | 60 |
| Min. load (kg) – static | 60 |
| Max. load (lbs) | 330 |
| Max. load (kg) | 150 |
| Max. load (kg) | 150 |
Support & manuals
Installation manual Flexible engine mountings KSTEUN, MITSTEUN, HY, LMX
