Description

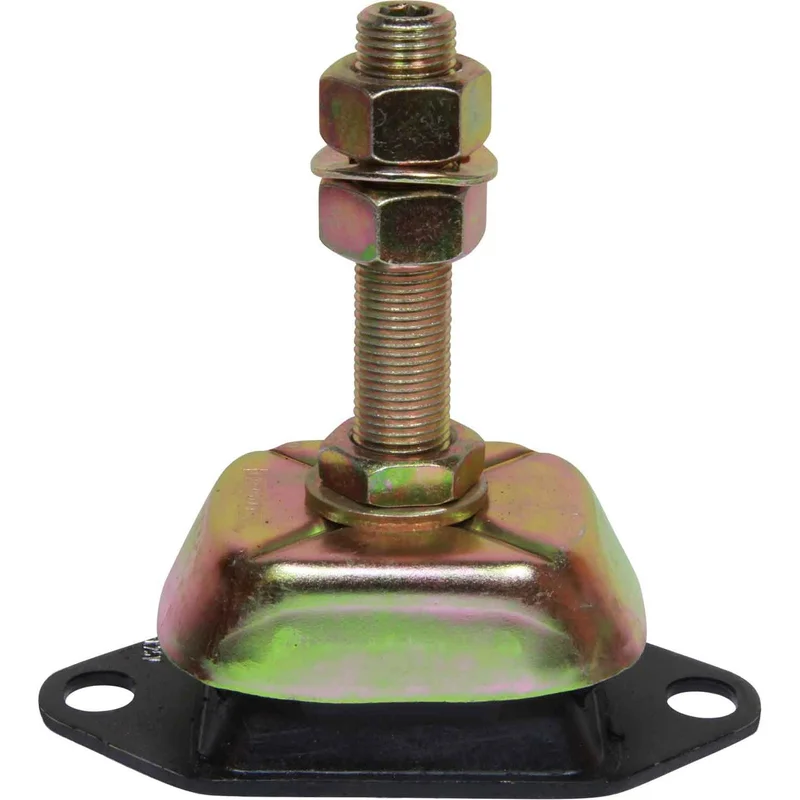

Vetus KSTEUN75 is a flexible engine mount designed for use with marine engines. The flexible mounting contains a special rubber compound which has excellent damping properties, absorbing vibrations and propeller thrust.
This engine mount is suitable for small engines up to approximately 80HP.
– Vertical Stiffness: 1
– Athwartship Stiffness: 0.75
– Fore and Aft Stiffness: 2.5
– Minimum Static Compression: 2mm
– Maximum Dynamic Compression: 4mm
– Hardness: 55° Shore
| Maximum Load | Dynamic: 75kg (165.3lbs) |
| Hole Centres | 100mm (4″) |
| Engine Mount | Vetus Engine Mounts |
| Stud Size | M16 x 1.5 |
| Brand | Vetus |
| Model | K75 |
| Working Load | Minimum Static Load: 38kg |
| Height | Overall: 122mm, From Bottom Of Base To Top Of Metal Cover: 39mm |
| Dimensions | Base: 120mm x 60mm |
Manufacturer Part Number: KSTEUN75V
