Description

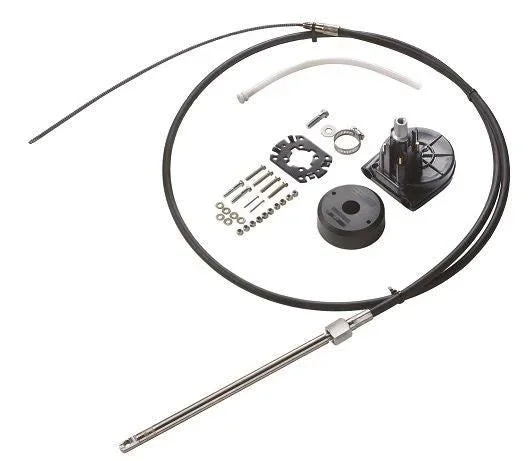

Light series cable steering kitCable steering kit including: Helm, straight bezel, cable and spent core tube.
The helm is equipped as standard with a friction brake.
Available with cable lenght: 5 to 20 ft. (1530 – 6100 mm) in steps of 1 ft.
Specifications
| Maximum engine output (HP) | 55 |
| Maximum engine output (HP) | 55 |
| Minimum bend radius (inches) | 11 57/64 |
| Max. steering wheel diameter (inches) | 16 |
| Cable travel (mm) | 230 |
| Cable travel (mm) | 230 |
| Wheel turns | 2,6 |
| Wheel turns | 2,6 |
| Max. steering wheel diameter (mm) | 406 |
| Max. steering wheel diameter (mm) | 406 |
| Minimum bend radius (mm) | 302 |
| Minimum bend radius (mm) | 302 |
| Cable length (mm) | 4572 |
| Cable length (mm) | 4572 |
Support & manuals
Installation manual Cable steering set LCS
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
