Description

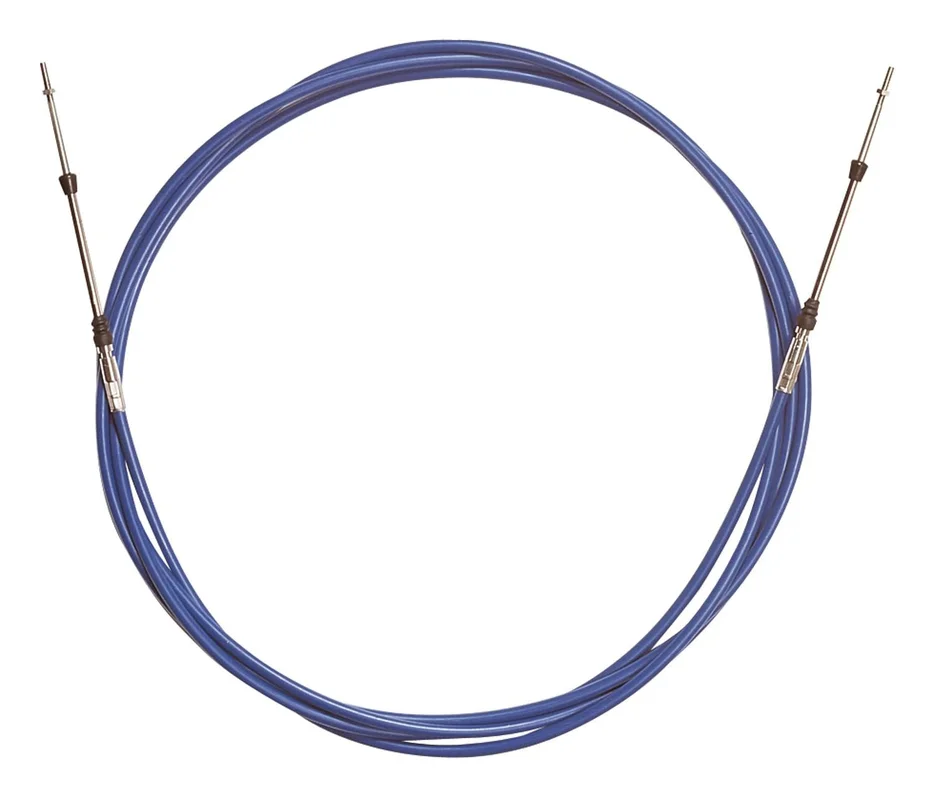

High quality cable for use with VETUS, Morse, Teleflex, Ultraflex and other engine remote high-quality push-pull cable uses a multi-strand wire core for superb strength and flexibility. The core is provided with a ribbed synthetic sheath, ensuring that contact with the outer casing is kept to a minimum. Therefore, LF-type cables are therefore ideal for long and complicated runs and for dual-station installations.
Specifications
| Thread | 10-32 UNF |
| Thread | 10-32 UNF |
| Sort cable | Low friction |
| Sort cable | Low friction |
| Length (feet) | 6.65 |
| Nominal travel (inches) | 3 |
| Bending radius (mm) | 165 |
| Bending radius (mm) | 165 |
| Nominal travel (mm) | 75 |
| Nominal travel (mm) | 75 |
| Length (m) | 2 |
| Length (m) | 2 |
| Minimum bend radius (inches) | 6 1/2 |
| Minimum bend radius (mm) | 165 |
| Minimum bend radius (mm) | 165 |
| Stroke (inches) | 3 |
| Stroke (mm) | 76,2 |
| Stroke (mm) | 76,2 |
