VETUS Magnus escape hatch (MAG5151SL)

Description

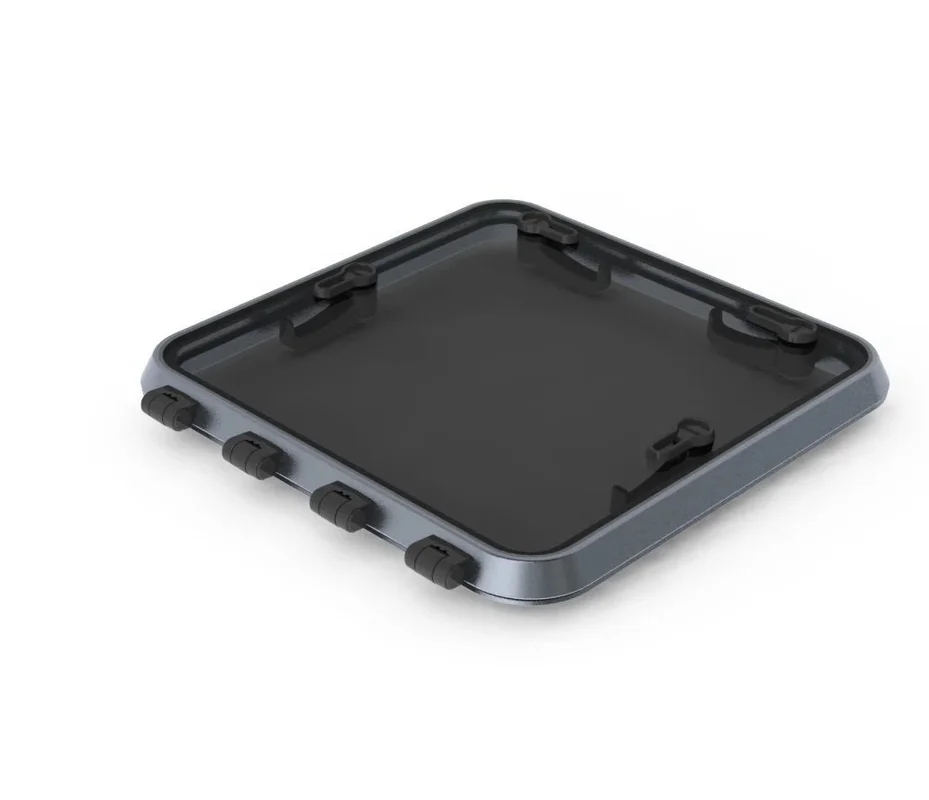

Satin sheen anodized aluminium frame. “Dark smoke” coloured acrylic. Lid can be held open at any angle up to 180°.MAGNUS hatches have a satin sheen anodized frame profile with a 10 mm thick ‘dark smoke’ coloured acrylic and are designed for ocean use, design category A, Area I. These hatches can be opened from the inside or outside through 180° with almost no obstructions in the opening. They have a ventilation position and can be locked completely watertight. The cut-out sizes of this type match the market-based dimensions. Application on habitable multihulls as a means of escape in theinverted position, is subject to European contact our glazing team for further :
VETUS strongly advises against installing a MAGNUS AI hatch below deck level in areas where (temporary) immersion may occur. When installing a hatch below deck always pay extra attention to the base area because flexing of the hull will compromise watertightness of any hatch.

Specifications

Support & manuals

DoC Hatch MAGNUSInstallation and user manual Hatches MAGNUS, ALTUS, FGH(F)
