Description

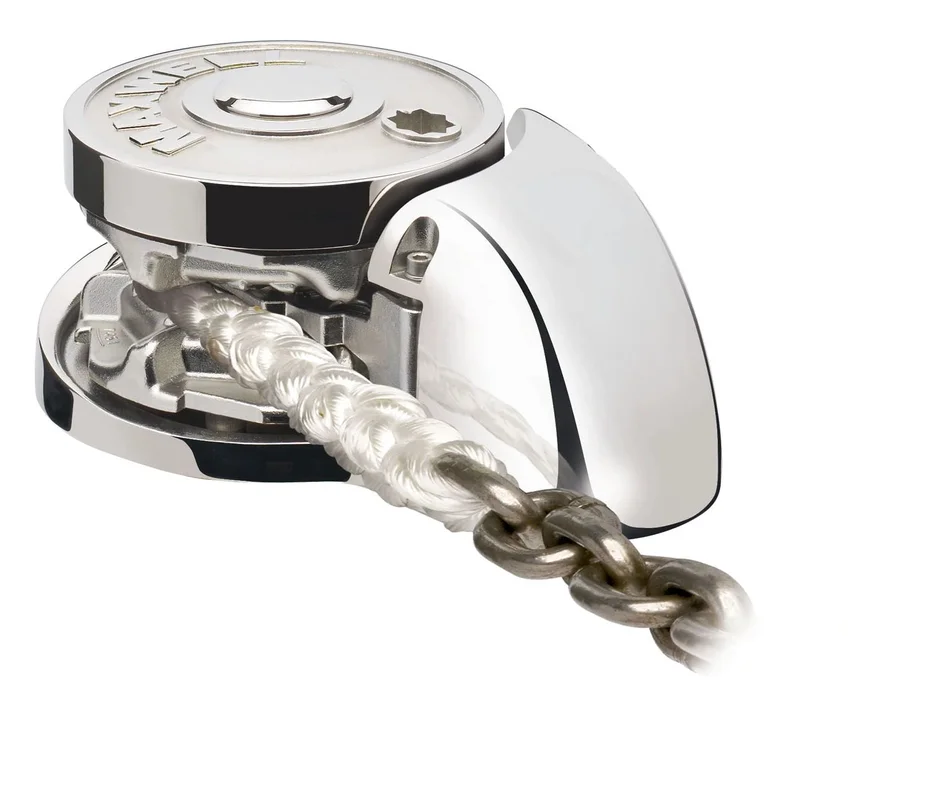

Suitable for 10mm or 3/8″ chain and 16mm to 20mm (5/8″ to 3/4″) Nylon rope. The stainless steel RC12 automatic rope/chain anchor winch is Maxwell’s top range version of the vertical RC Series Windlass range. 90TDCy. Activation of the ratcheted mechanism lever ensures the windlass cannot backwindduring emergency (manual) retrieval of the rode (rope and/or chain) and anchor. Important: Maxwell windlasses must be used in conjunction with a chain stopper and/or alternative snubbing device to take the load off the windlass while laying at anchor . The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way. Every Maxwell automatic rope/chain windlass is available with all the necessary components for fully automatic dual direction control in a competitively priced package. This windlass is also available in a version with extra deck clearance. Contact your dealer for more information.
Specifications
| Motor (W) | 1200 |
| Motor (W) | 1200 |
| Voltage (V) | 12 |
| Voltage (V) | 12 |
| Vertical/Horizontal | Vertical |
| Vertical/Horizontal | Vertical |
| Rope/chain | Rope/chain |
| Rope/chain | Rope/chain |
| Drum | No |
| Drum | No |
| Weight (lbs) | 51 |
| Maximum pull/lift (lbs) | 3500 |
| Chain short link (inches) | 1/2 |
| Chain (inch) | 1/2 |
| Rope (inch) | 3/4 |
| Weight (kg) | 23 |
| Weight (kg) | 23 |
| Maximum pull/lift (kg) | 1590 |
| Maximum pull/lift (kg) | 1590 |
| Chain short link (mm) | 12/13 |
| Chain short link (mm) | 12/13 |
| Chain (mm) | 12-13 |
| Chain (mm) | 12-13 |
| Rope (mm) | 20 |
| Rope (mm) | 20 |
