Description

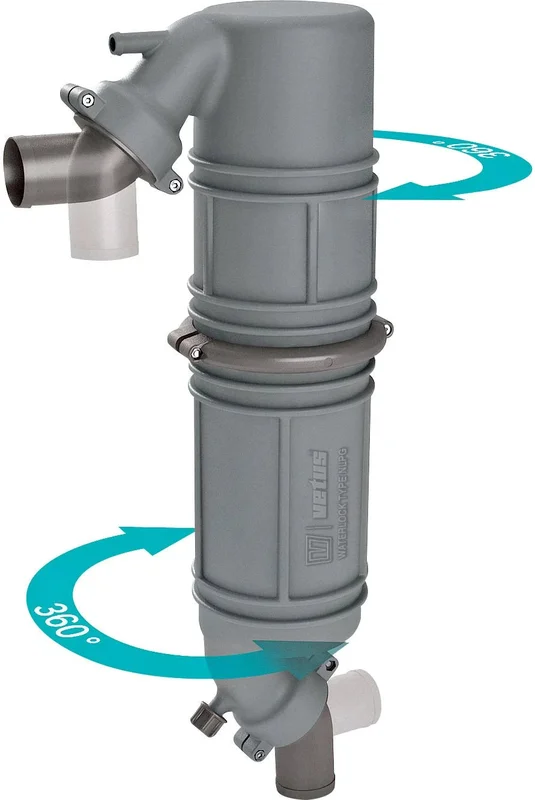

Combines the functions of a muffler and gooseneck. Saves installation time and space while maintaining the essential qualities of a good exhaust the functions of a muffler and gooseneck saves installation time and space while maintaining the essential qualities of a good exhaust system with impressively negligible back pressure. The gooseneck prevents water backfilling the exhaust, while the muffler creates additional water mixing to further reduce the exhaust noise.
Specifications
Specifications
| Function | Muffler + Gooseneck |
| Function | Muffler + Gooseneck |
| Capacity (litres) | 10 |
| Capacity (litres) | 10 |
| Capacity (gallons) | 2.6 |
| Inlet hose connection diameter (mm) | 60 |
| Inlet hose connection diameter (mm) | 60 |
| Inlet Hose connection diameter (inch) | 2 3/8 |
| Outlet Hose connection diameter (mm) | 60 |
| Outlet Hose connection diameter (mm) | 60 |
| Outlet Hose connection diameter (inch) | 2 3/8 |
| Length (mm) | 285,3 |
| Length (mm) | 285,3 |
| Length (inches) | 11 15/64 |
| Width (mm) | 160 |
| Width (mm) | 160 |
| Width (inch) | 6 19/64 |
| Height (mm) | 646,4 |
| Height (mm) | 646,4 |
| Height (inch) | 25 29/64 |
| Position of the waterlock | Vertical |
| Position of the waterlock | Vertical |
| Heavy Duty | No |
| Heavy Duty | No |
| Rotatable hose connections | Yes |
| Rotatable hose connections | Yes |
| Rotatable body parts | No |
| Rotatable body parts | No |
