Description

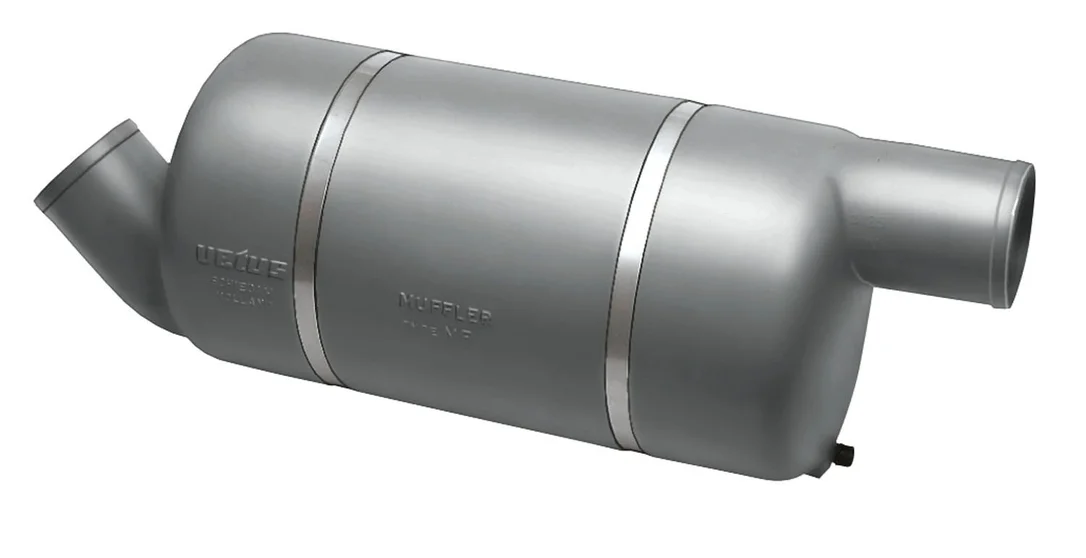

Plastic muffler, specially developed for fast craft with powerful engines. Achieves tremendous reduction of exhaust noise. Capacity 43.5 compact mufflers combine a tremendous reduction of exhaust noise with minimal back pressure. All parts are made of lightweight, corrosion-free synthetic materials. Thetransom connections for this system are available in stainless steel (AISI 316) or reinforced black plastic. Type MV mufflers and the transom connection are provided with a check valve which prevents seawater from flowing into the engine.
Specifications
Specifications
| Function | Muffler |
| Function | Muffler |
| Capacity (litres) | 43,5 |
| Capacity (litres) | 43,5 |
| Capacity (gallons) | 11.5 |
| Inlet hose connection diameter (mm) | 152 |
| Inlet hose connection diameter (mm) | 152 |
| Inlet Hose connection diameter (inch) | 6 |
| Outlet Hose connection diameter (mm) | 152 |
| Outlet Hose connection diameter (mm) | 152 |
| Outlet Hose connection diameter (inch) | 6 |
| Length (mm) | 959 |
| Length (mm) | 959 |
| Length (inches) | 37 13/16 |
| Width (mm) | 320 |
| Width (mm) | 320 |
| Width (inch) | 12 19/32 |
| Height (mm) | 320 |
| Height (mm) | 320 |
| Height (inch) | 12 19/32 |
| Position of the waterlock | Horizontal |
| Position of the waterlock | Horizontal |
| Heavy Duty | No |
| Heavy Duty | No |
| Rotatable hose connections | No |
| Rotatable hose connections | No |
| Rotatable body parts | No |
| Rotatable body parts | No |
Support & manuals
Installation manual Exhaust silencer MF, MV
