Description

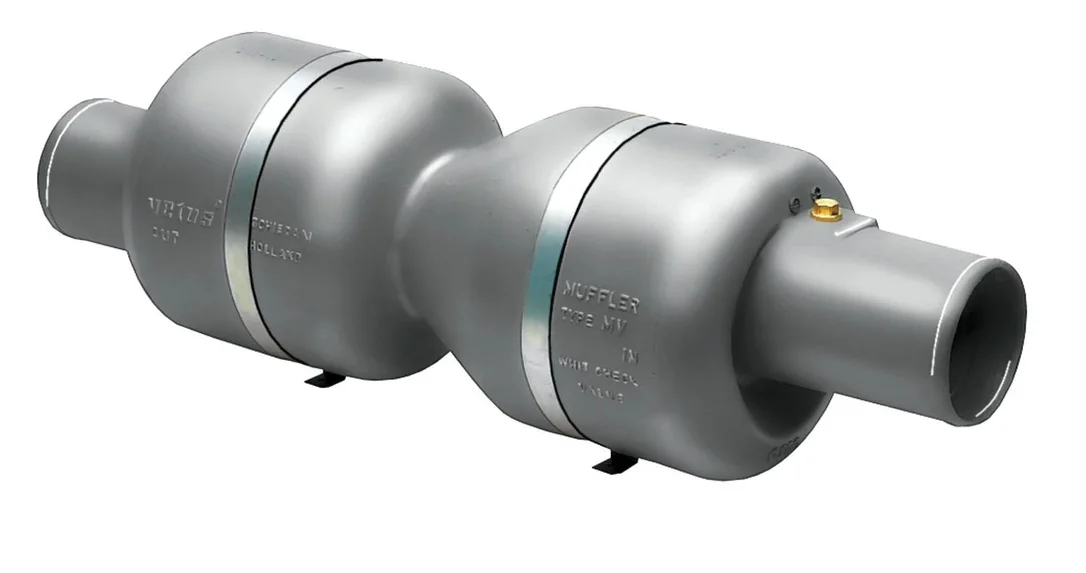

Plastic muffler with check valve, developed for fast craft with powerful engines. Achieves tremendous reduction of exhaust noise. Capacity 11.5 compact mufflers combine a tremendous reduction of exhaust noise with minimal back pressure. All parts are made of lightweight, corrosion-free synthetic materials. Thetransom connections for this system are available in stainless steel (AISI 316) or reinforced black plastic. Type MV mufflers and the transom connection are provided with a check valve which prevents seawater from flowing into the engine.
Specifications
Specifications
| Function | Muffler |
| Function | Muffler |
| Capacity (litres) | 11,5 |
| Capacity (litres) | 11,5 |
| Capacity (gallons) | 3 |
| Inlet hose connection diameter (mm) | 100 |
| Inlet hose connection diameter (mm) | 100 |
| Inlet Hose connection diameter (inch) | 4 |
| Outlet Hose connection diameter (mm) | 100 |
| Outlet Hose connection diameter (mm) | 100 |
| Outlet Hose connection diameter (inch) | 4 |
| Length (mm) | 702 |
| Length (mm) | 702 |
| Length (inches) | 27 19/32 |
| Width (mm) | 210 |
| Width (mm) | 210 |
| Width (inch) | 8 17/64 |
| Height (mm) | 210 |
| Height (mm) | 210 |
| Height (inch) | 81/16 |
| Position of the waterlock | Horizontal |
| Position of the waterlock | Horizontal |
| Heavy Duty | No |
| Heavy Duty | No |
| Rotatable hose connections | No |
| Rotatable hose connections | No |
| Rotatable body parts | No |
| Rotatable body parts | No |
Support & manuals
Installation manual Exhaust silencer MF, MV
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
