Description

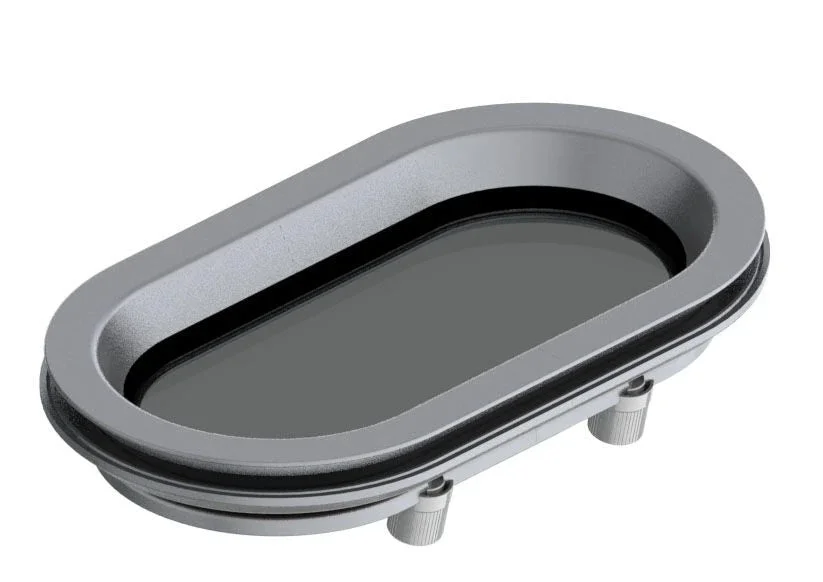

Suitable for use in the hull side. Satin anodized aluminum frame. “Smoke” coloured opening pane. Clamp fixing ensures that no fasteners are visible.
Heavy duty portholes! These portholes are suitable for use in the hull side. The 10mm ‘smoke’ coloured opening pane is set in satin anodized aluminum frame. Black and white powder coated frames are optional. The clamp fixing ensures that no fasteners are visible from either inside or outside. The portholes can be fitted in a surface with a minimum thickness of 2mm and a maximum thickness of 18mm. As standard a mosquito screen is supplied. A fixed version of each opening porthole is also available.
PM111 has the following specifications:
Specifications
| Material | Aluminium |
| Material | Aluminium |
| Type mosquito screen | HOR11 |
| Type mosquito screen | HOR11 |
| CE mark | AI |
| CE mark | AI |
| Shape | Oval |
| Shape | Oval |
| Opening pane | Framed |
| Opening pane | Framed |
| Length (inches) | 9 5/8 |
| Height (inches) | 5 3/4 |
| Cut-out radius (inches) | 2 3/8 |
| Cut-out height(inch) | 4 13/16 |
| Cut-out length (inch) | 8 11/16 |
| Height (mm) | 146 |
| Height (mm) | 146 |
| Cut-out radius (mm) | 61 |
| Cut-out radius (mm) | 61 |
| Length (m) | 244 |
| Length (m) | 244 |
| Cut-out height(mm) | 122 |
| Cut-out height(mm) | 122 |
| Cut-out length (mm) | 220 |
| Cut-out length (mm) | 220 |
