Description

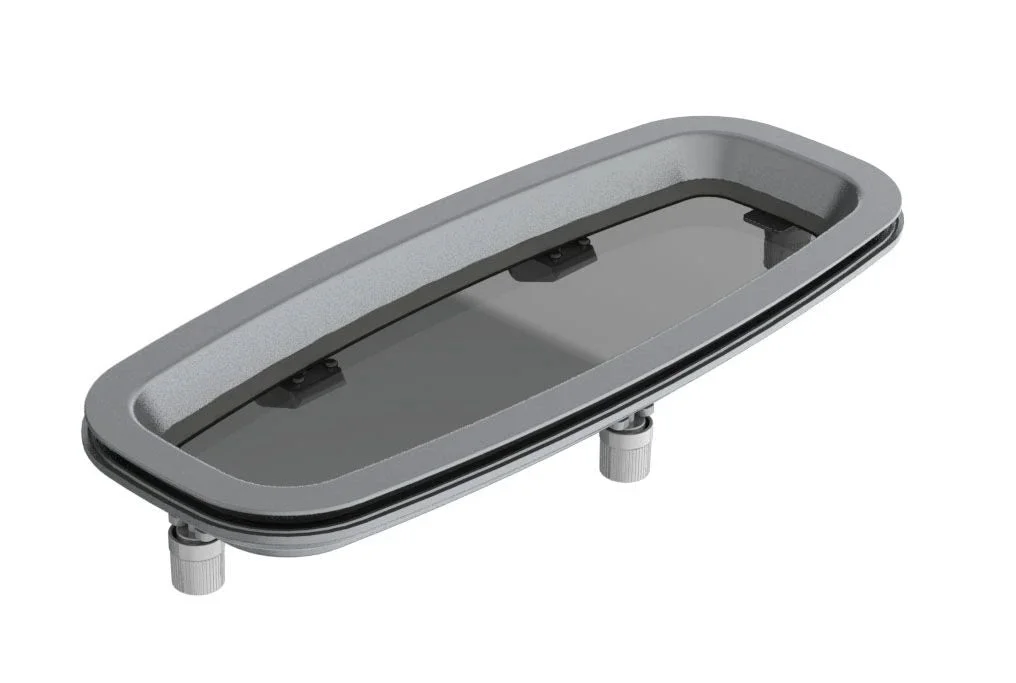

Suitable for use in the coachroof side. ‘Smoke’ coloured -unframed -opening pane. Clamp fixing ensures that no fasteners are visible. As standard a mosquito screen is supplied.
Medium duty portholes!These portholes are suitable for use in the coachroof side. They come with a 10mm ‘Smoke’ coloured -unframed -opening pane. The clamp type installation ensures that no fasteners are visible from either inside or outside. The portholes can be held open in any position due to the friction type hinges. In closed position 2 knobs ensure water resistance. They are standard supplied with a mosquito screen. The porthole can be fitted in a surface with a minimum thickness of 2mm and a maximum thickness of 18mm.
PXF has the following specifications:
Specifications
| Material | Aluminium |
| Material | Aluminium |
| Type mosquito screen | HOR48 |
| Type mosquito screen | HOR48 |
| CE mark | AIII |
| CE mark | AIII |
| Shape | Oval |
| Shape | Oval |
| Opening pane | Unframed |
| Opening pane | Unframed |
| Length (inches) | 209/16 |
| Height (inches) | 8 5/8 |
| Cut-out height(inch) | 7 11/16 |
| Cut-out length (inch) | 19 5/8 |
| Height (mm) | 219 |
| Height (mm) | 219 |
| Length (m) | 522 |
| Length (m) | 522 |
| Cut-out height(mm) | 195 |
| Cut-out height(mm) | 195 |
| Cut-out length (mm) | 498 |
| Cut-out length (mm) | 498 |
Support & manuals
DoC Porthole PXInstallation and user manual Portholes PL, PM, PW, PX, PZ
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
