Description

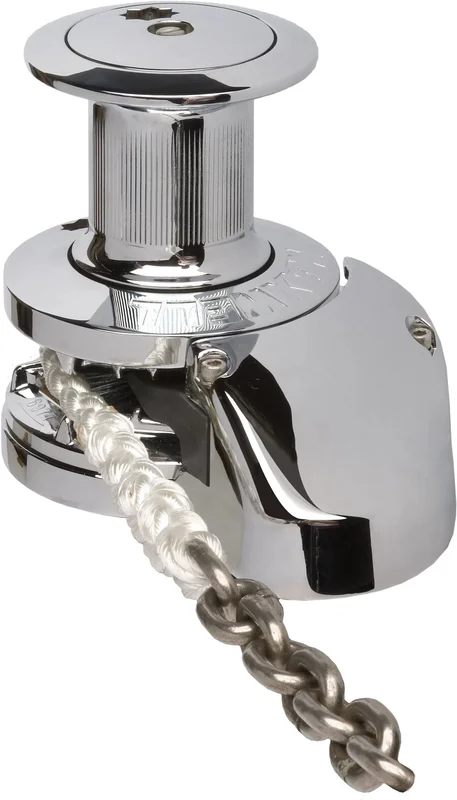

The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10 is a second-generation rope/chain windlass and is a favourite choice for cruising yachts, launches and pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.
Specifications
| Motor (W) | 1000 |
| Motor (W) | 1000 |
| Voltage (V) | 12 |
| Voltage (V) | 12 |
| Vertical/Horizontal | Vertical |
| Vertical/Horizontal | Vertical |
| Rope/chain | Rope/chain |
| Rope/chain | Rope/chain |
| Drum | Yes |
| Drum | Yes |
| Weight (lbs) | 42 |
| Maximum pull/lift (lbs) | 1540 |
| Chain short link (inches) | 5/16 |
| Chain (inch) | 5/16 |
| Rope (inch) | 9/16 – 5/8 |
| Weight (kg) | 19 |
| Weight (kg) | 19 |
| Maximum pull/lift (kg) | 700 |
| Maximum pull/lift (kg) | 700 |
| Chain short link (mm) | 8 |
| Chain short link (mm) | 8 |
| Chain (mm) | 8 |
| Chain (mm) | 8 |
| Rope (mm) | 14-16 |
| Rope (mm) | 14-16 |
