Description

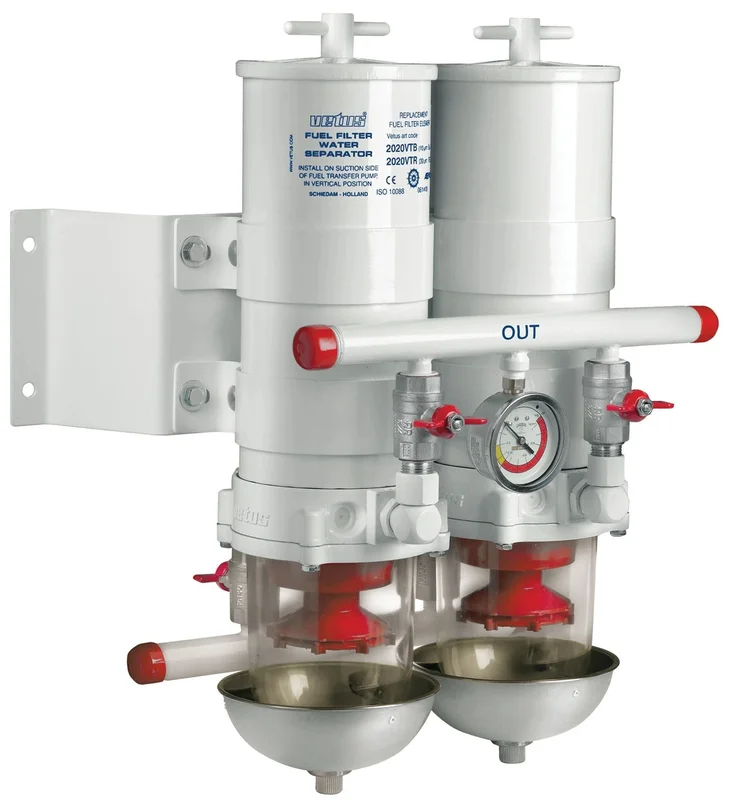

The 75100 VTE is a double fuel filter/water separator. The calculation of the capacity is based on the fact that there is always one filter standby.
Specifications
| Replacement filter 10 μm (optional) | 2 x 2020VTB |
| Replacement filter 10 μm (optional) | 2 x 2020VTB |
| Replacement filter 30 μm (standard) | 2 x 2020VTR |
| Replacement filter 30 μm (standard) | 2 x 2020VTR |
| Depth (inches) | 133/16 |
| Height (inches) | 21 17/64 |
| Max. capacity (gallons/hour) | 160 |
| Width (inch) | 18 15/16 |
| Depth (mm) | 335 |
| Depth (mm) | 335 |
| Height (mm) | 540 |
| Height (mm) | 540 |
| Max. capacity (litres/hour) | 720 |
| Max. capacity (litres/hour) | 720 |
| Width (mm) | 465 |
| Width (mm) | 465 |
| Filter version | Double |
| Filter version | Double |
| Connections | R 3/4 |
| Connections | R 3/4 |
| Weight (lbs) | 27.6 |
| Weight (kg) | 12,5 |
| Weight (kg) | 12,5 |
Support & manuals
DoC Fuel filter _VTEInstallation and user manual Fuel Filters/Water Separators 75100VTE, 79100VTE, 83100VTE, 87100VTE, 91100VTE
