Description

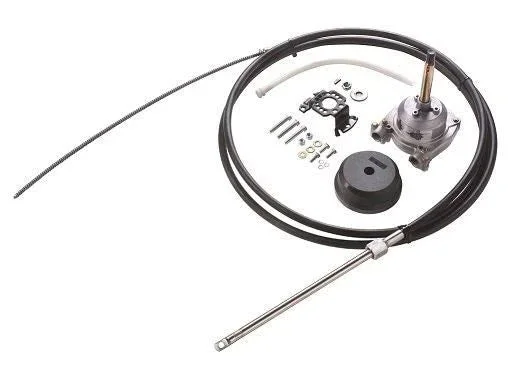

Zero feedback cable steerinng kitZero torque high performance cable stering kit includung: Zero feedback helm, straight bezel, high perfomance cable and spent core tube.
Smooth and durable operation due to planetary gear design.
Smooth and durable operation due to planetary gear design.
A 20° Bezel kit can be ordered separetly if required.
A.B.Y.C., N.M.M.A., IMCI., and CE approved.
Available with cable length:
5 to 20 ft (153 to 610 cm) in steps of 1 ft.
Specifications
| Maximum engine output (HP) | 125 |
| Maximum engine output (HP) | 125 |
| Minimum bend radius (inches) | 7 7/8 |
| Max. steering wheel diameter (inches) | 16 |
| Cable travel (mm) | 230 |
| Cable travel (mm) | 230 |
| Wheel turns | 3,8 |
| Wheel turns | 3,8 |
| Max. steering wheel diameter (mm) | 406 |
| Max. steering wheel diameter (mm) | 406 |
| Minimum bend radius (mm) | 200 |
| Minimum bend radius (mm) | 200 |
| Cable length (mm) | 3660 |
| Cable length (mm) | 3660 |
