Description

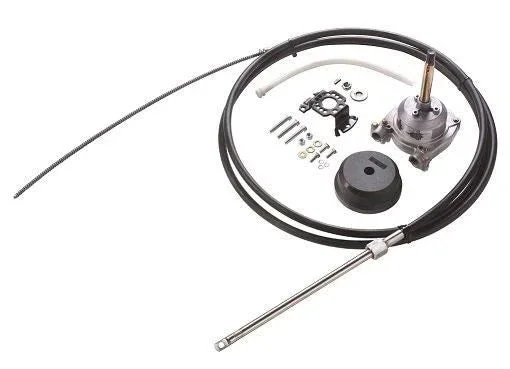

Zero feedback cable steering kitZero torque high performance cable stering kit includung: Zero feedback helm, straight bezel, high perfomance cable and spent core tube.
Smooth and durable operation due to planetary gear design.
Unique design eliminates any torque coming from the steering cable, ceating a effortles ride.
A 20° Bezel kit can be ordered separetly if required.
Available with cabel length:
5 to 20 ft. (1530 to 6100 mm) in steps of 1 ft.
Specifications
| Maximum engine output (HP) | 125 |
| Maximum engine output (HP) | 125 |
| Minimum bend radius (inches) | 7 7/8 |
| Max. steering wheel diameter (inches) | 16 |
| Cable travel (mm) | 230 |
| Cable travel (mm) | 230 |
| Wheel turns | 3,8 |
| Wheel turns | 3,8 |
| Max. steering wheel diameter (mm) | 406 |
| Max. steering wheel diameter (mm) | 406 |
| Minimum bend radius (mm) | 200 |
| Minimum bend radius (mm) | 200 |
| Cable length (mm) | 2440 |
| Cable length (mm) | 2440 |
Support & manuals
Installation manual Cable steering set HZF
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
